Eaton 3G-OTH-22825 — Technical Specifications

Name: Eaton 3G-OTH-22825 EATON Surge Protection Device: Two Phase, 600V AC, 2 Poles, 2 + Ground Wires, L-G/L-N/N-G, 600 V AC (MPN AGDN60020R). Key specifications — Voltage: 600V AC; Number of Wires: 2 Wires + Ground; Phase: Two; Modes of Protection: L-N; Max. Continuing Operating Voltage: 600 V AC; Voltage Protection Rating: 1500V (L-L, L-G, N-G); Short Circuit Current Rating: 200 kA; Filtering: No.
Brand: Eaton

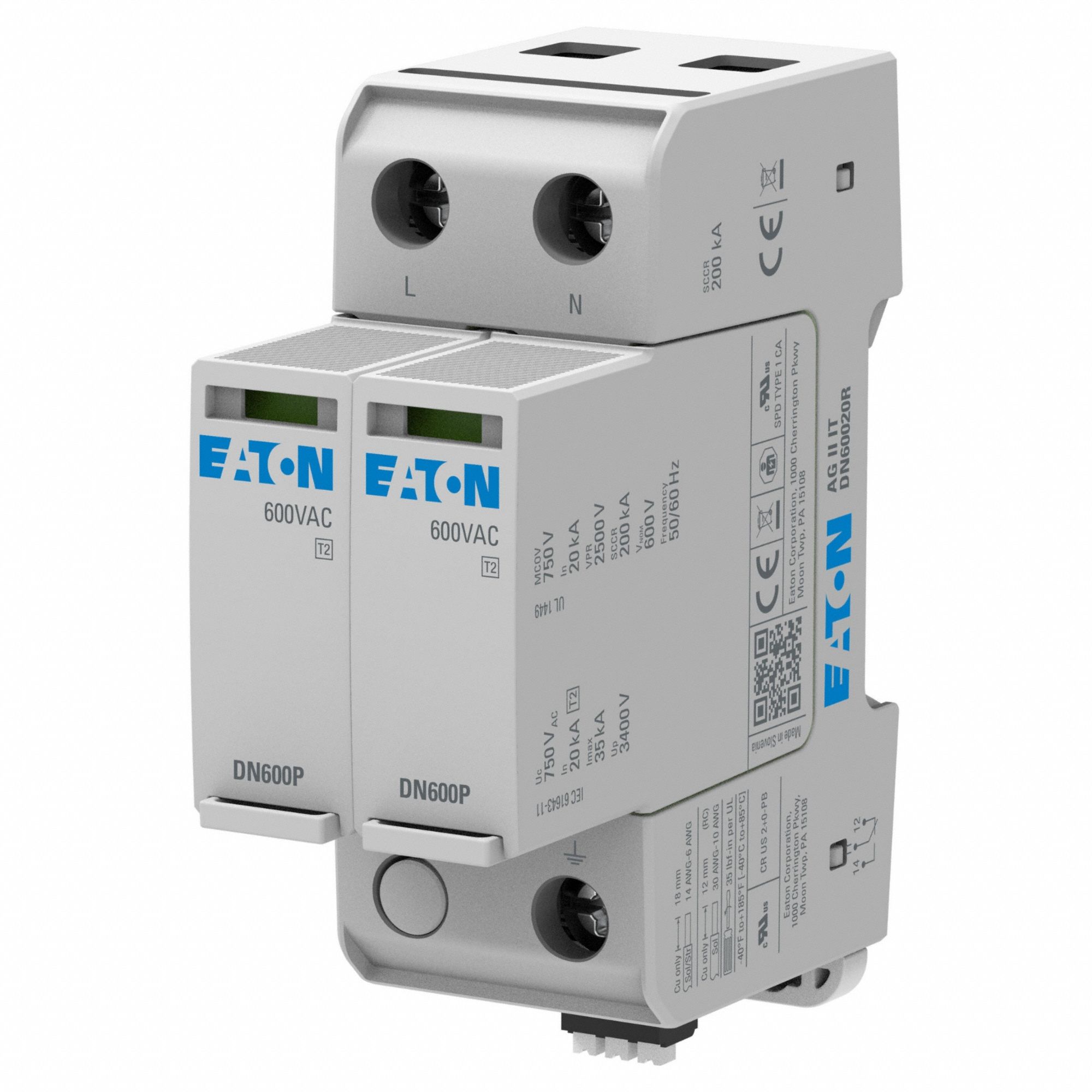

The EATON AGDN60020R is a two-phase, DIN Rail internal-mount surge protective device (SPD) designed for panelboard mounting. It operates on a 600V AC system with 2 wires plus ground, providing L-N mode protection and a voltage protection rating of 1500V (L-L, L-G, N-G). The unit includes alarm contacts, has a short-circuit current rating of 200 kA, and a maximum continuous operating voltage of 600 V AC.

View Product & Quote

Technical Specifications

Parameter	Value
AC	600V
Type	2 + Ground Wires, L-G/L-N/N-G
Brand	EATON
Phase	Two
Poles	2
Voltage	600V AC
Includes	Alarm Contacts
Filtering	No
Mounting Style	Panelboard
Number Of Wires	2 Wires + Ground
Modes Of Protection	L-N
Manufacturer Part Number	AGDN60020R
Voltage Protection Rating	1500V (L-L, L-G, N-G)
Short Circuit Current Rating	200 kA
Max. Continuing Operating Voltage	600 V AC
