Eaton 3G-OTH-22792 — Technical Specifications

Name: Eaton 3G-OTH-22792 EATON Surge Protection Device: Two Phase, 480V AC, 2 Poles, 2 + Ground Wires, L-G/L-N/N-G, 480 V AC (MPN AGDN48020R). Key specifications — Voltage: 480V AC; Number of Wires: 2 Wires + Ground; Phase: Two; Modes of Protection: L-N; Max. Continuing Operating Voltage: 480 V AC; Voltage Protection Rating: 1500V (L-L, L-G, N-G); Short Circuit Current Rating: 200 kA; Filtering: No.
Brand: Eaton

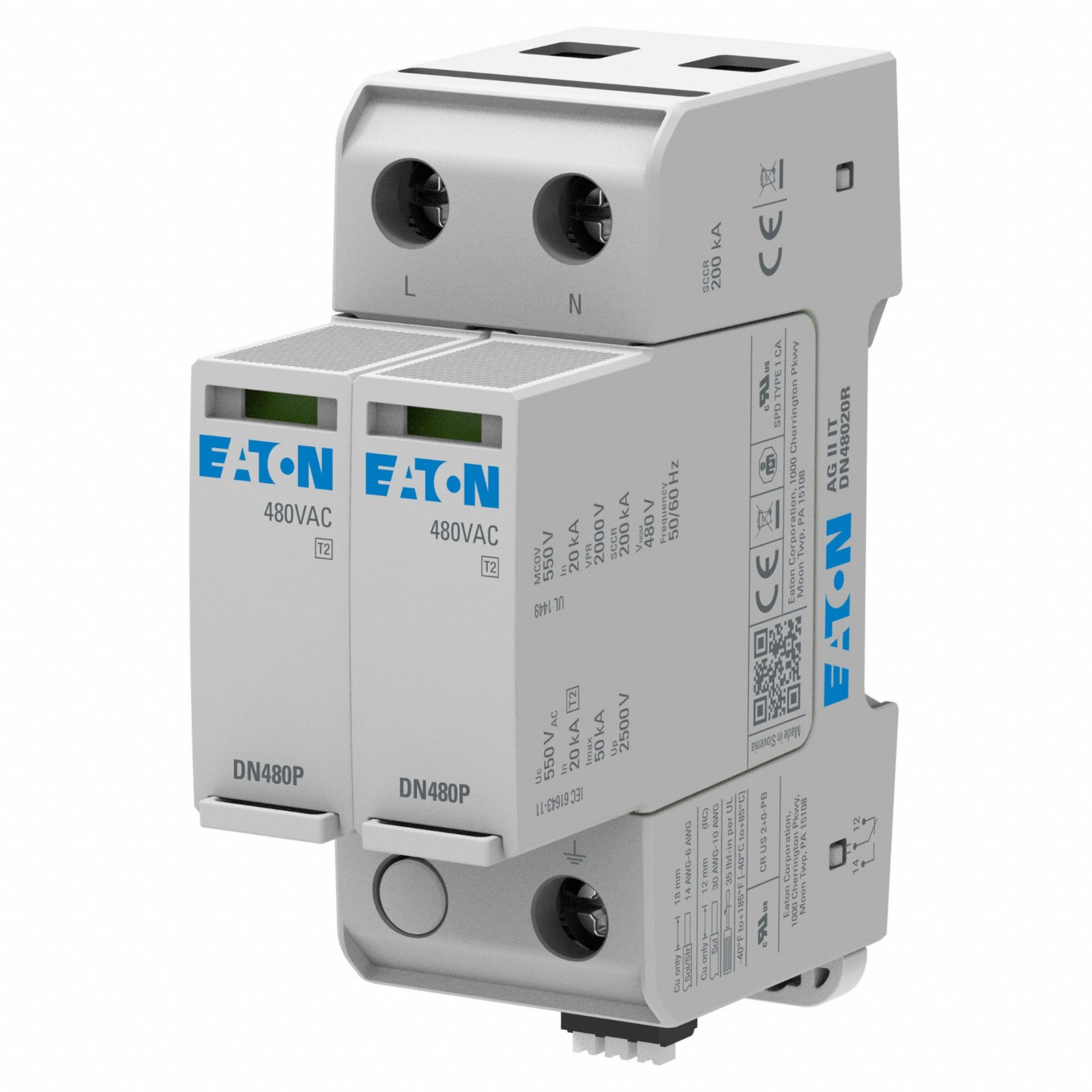

The EATON AGDN48020R is a two-phase, DIN-rail internal-mount surge protective device (SPD) rated for 480V AC with a 200 kA short-circuit current rating. It provides L-N mode protection with a voltage protection rating of 1500V (L-L, L-G, N-G) and includes alarm contacts. This SPD uses 2 wires plus ground and has a maximum continuous operating voltage of 480 V AC.

View Product & Quote

Technical Specifications

Parameter	Value
AC	480V
Type	2 + Ground Wires, L-G/L-N/N-G
Brand	EATON
Phase	Two
Poles	2
Voltage	480V AC
Includes	Alarm Contacts
Filtering	No
Mounting Style	DIN-Rail
Number Of Wires	2 Wires + Ground
Modes Of Protection	L-N
Manufacturer Part Number	AGDN48020R
Voltage Protection Rating	1500V (L-L, L-G, N-G)
Short Circuit Current Rating	200 kA
Max. Continuing Operating Voltage	480 V AC
