Eaton 3G-OTH-23011 — Technical Specifications

Name: Eaton 3G-OTH-23011 EATON Surge Protection Device: Single Phase, 600V AC, 1 Poles, 1 Wire + Ground Wires, L-G/L-N/N-G (MPN AGDN60010R). Key specifications — Voltage: 600V AC; Number of Wires: 1 Wire + Ground; Modes of Protection: L-N; Max. Continuing Operating Voltage: 600 V AC; Voltage Protection Rating: 1500V (L-G); Short Circuit Current Rating: 200 kA; Filtering: No; Includes: Alarm Contacts.
Brand: Eaton

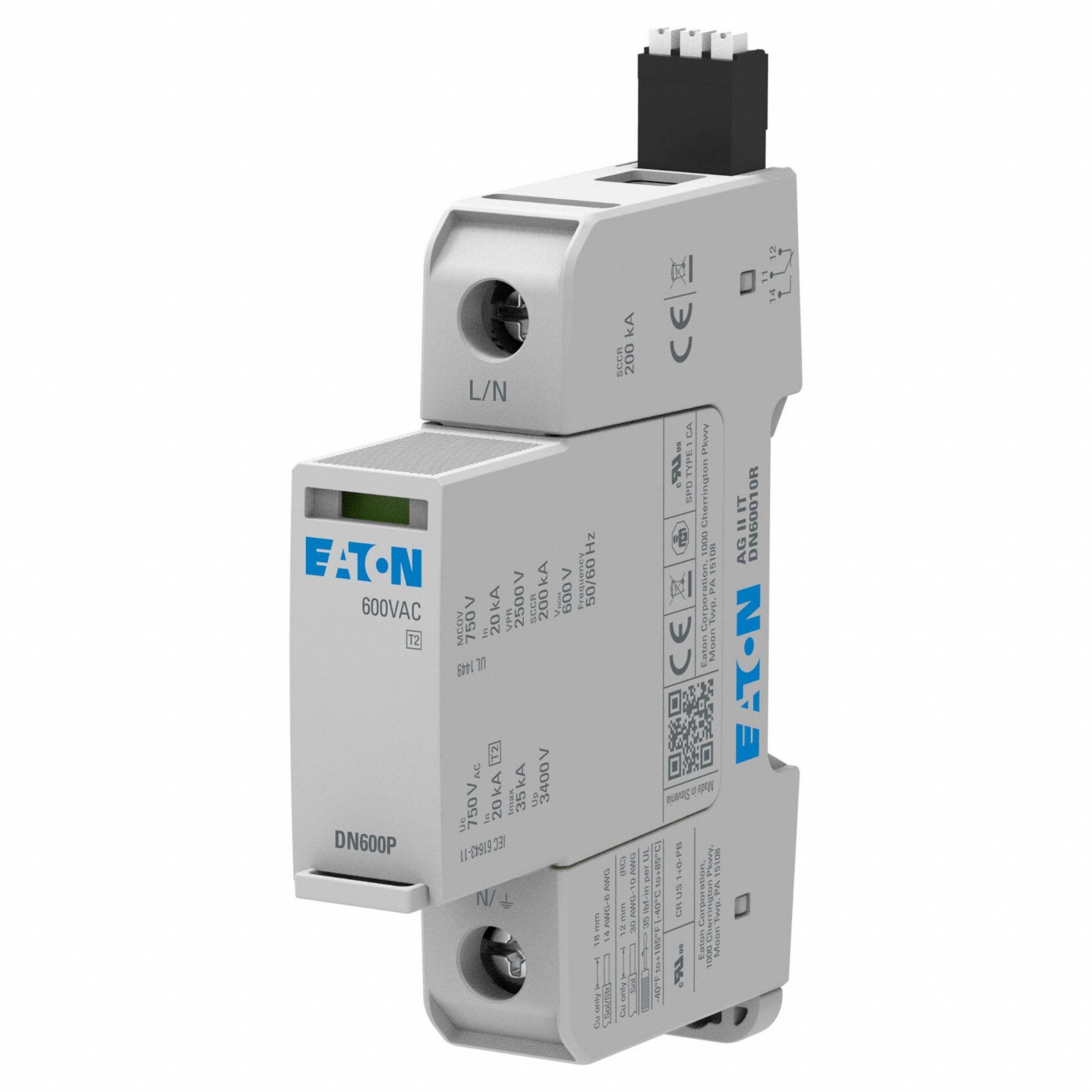

The EATON AGDN60010R is a single-phase, DIN-rail-mounted surge protective device (SPD) for internal-mount applications. It operates at 600V AC with a maximum continuous operating voltage of 600V AC, a short-circuit current rating of 200 kA, and a voltage protection rating of 1500V (L-G). This SPD protects L-N modes, includes alarm contacts, and supports 1 wire plus ground.

View Product & Quote

Technical Specifications

Parameter	Value
AC	600V
Type	L-G/L-N/N-G
Brand	EATON
Poles	1
Voltage	600V AC
Includes	Alarm Contacts
Filtering	No
Mounting Style	DIN-Rail
Number Of Wires	1 Wire + Ground
Modes Of Protection	L-N
Wire + Ground Wires	1
Manufacturer Part Number	AGDN60010R
Voltage Protection Rating	1500V (L-G)
Short Circuit Current Rating	200 kA
Max. Continuing Operating Voltage	600 V AC
