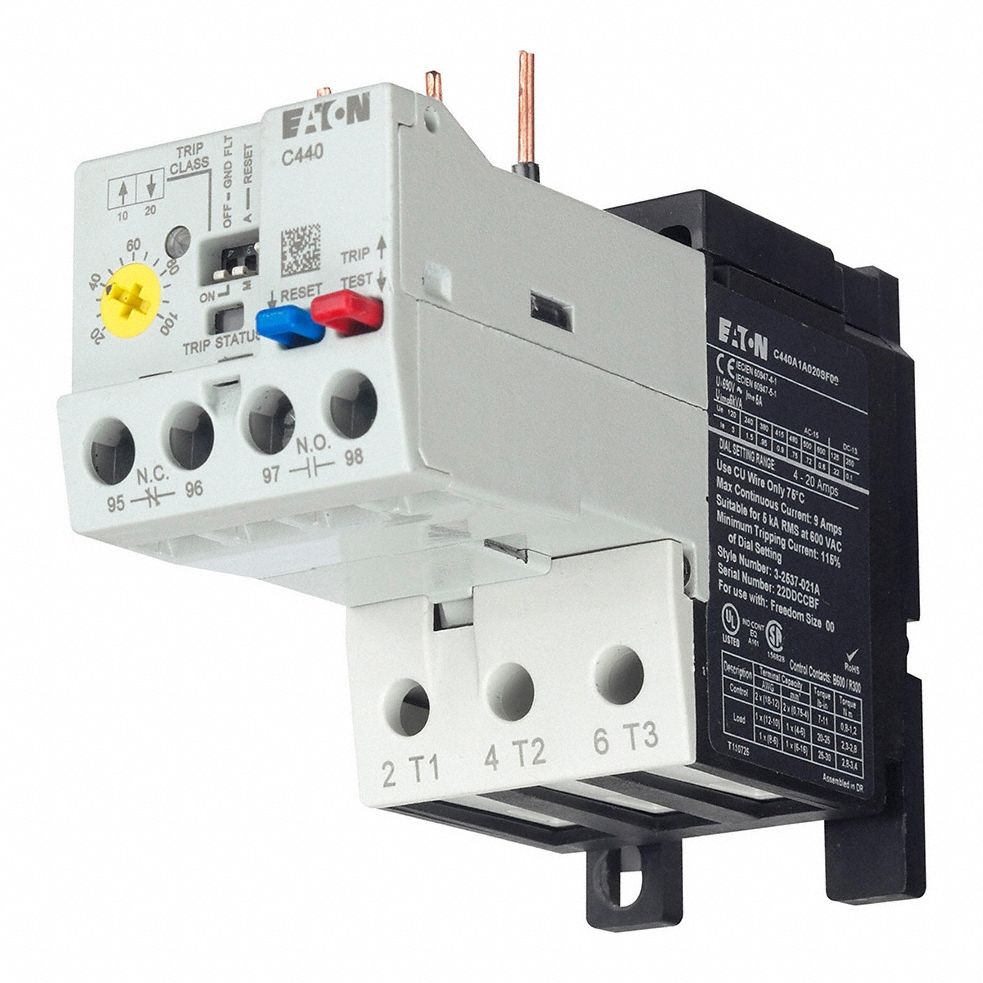

Eaton 3G-OTH-41539 — Technical Specifications

Name: Eaton 3G-OTH-41539 EATON Overload Relay: Electronic Protection, 3 Poles, NEMA Size 00, 0.33 A – 1.65 A (MPN C440A1A1P6SF00). Key specifications — Brand: EATON; Terminal Connection Type: Screw Clamp Terminals; Maximum Voltage Rating: 690V AC; Compatible Contactor Series: C25 Definite Purpose; Phase: Three; Thermal Units Required: Not Applicable to Electronic Type Overload Relays.
Brand: Eaton

The EATON Overload Relay: Electronic Protection is a NEMA electronic overload relay with three poles and NEMA Size 00, rated for 0.33 A – 1.65 A and a maximum voltage of 690V AC. It features screw clamp terminals and is compatible with the C25 Definite Purpose contactor series. This three-phase device does not require thermal units, as it is an electronic type overload relay.

View Product & Quote

Technical Specifications

Parameter	Value
Type	NEMA Size 00, 0.33 A – 1.65 A
Brand	EATON
Phase	Three
Poles	3
Maximum Voltage Rating	690V AC
Thermal Units Required	Not Applicable to Electronic Type Overload Relays
Manufacturer Part Number	C440A1A1P6SF00
Terminal Connection Type	Screw Clamp Terminals
Compatible Contactor Series	C25 Definite Purpose
