Eaton 3G-OTH-40457 — Technical Specifications

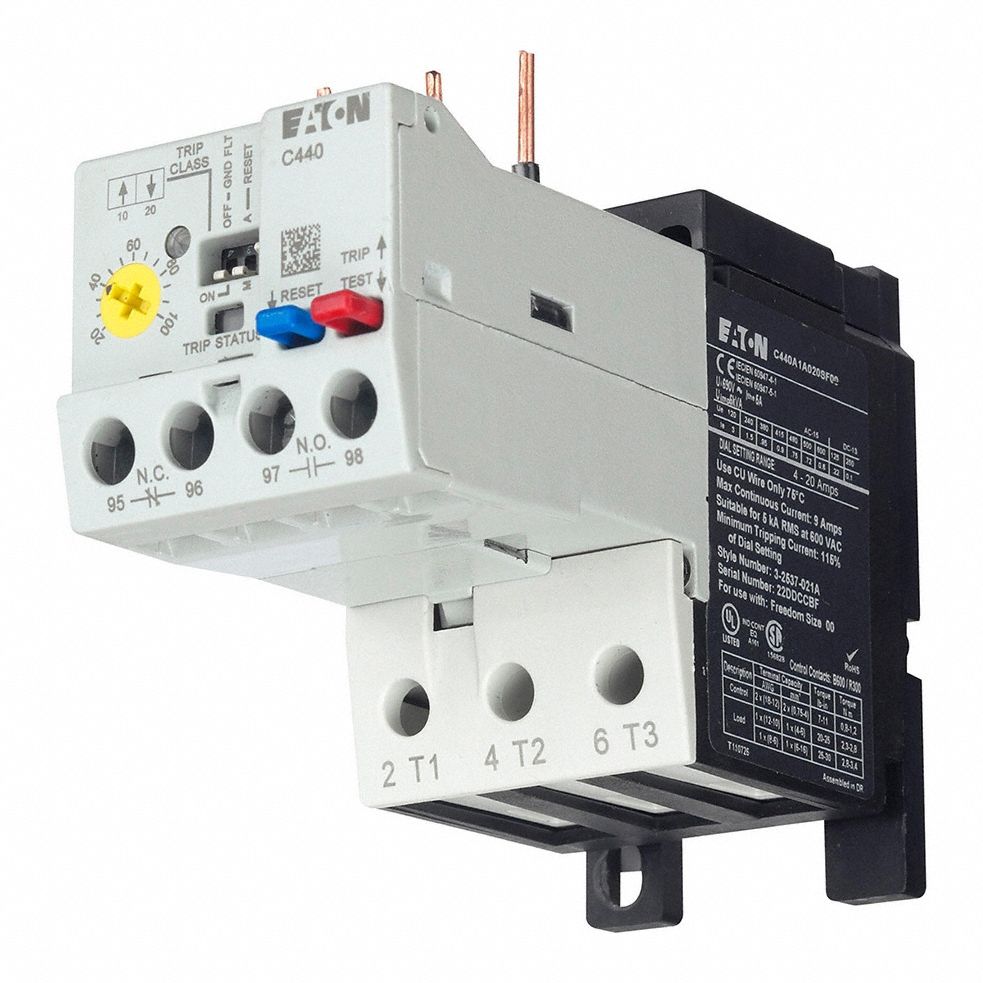

Name: Eaton 3G-OTH-40457 EATON Overload Relay: Electronic Protection, 3 Poles, NEMA Size 0, 1 A – 5 A (MPN C440A1A005SF0). Key specifications — Brand: EATON; Terminal Connection Type: Screw Clamp Terminals; Maximum Voltage Rating: 690V AC; Compatible Contactor Series: C25 Definite Purpose; Phase: Three; Thermal Units Required: Not Applicable to Electronic Type Overload Relays.
Brand: Eaton

The EATON Overload Relay is a NEMA Size 0 electronic protection device with three poles, rated for 1 A to 5 A and a maximum voltage of 690V AC. It features screw clamp terminals and is compatible with the C25 Definite Purpose contactor series. This three-phase relay does not require thermal units, as it is an electronic type.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	EATON
Phase	Three
Maximum Voltage Rating	690V AC
Thermal Units Required	Not Applicable to Electronic Type Overload Relays
Manufacturer Part Number	C440A1A005SF0
Terminal Connection Type	Screw Clamp Terminals
Compatible Contactor Series	C25 Definite Purpose
