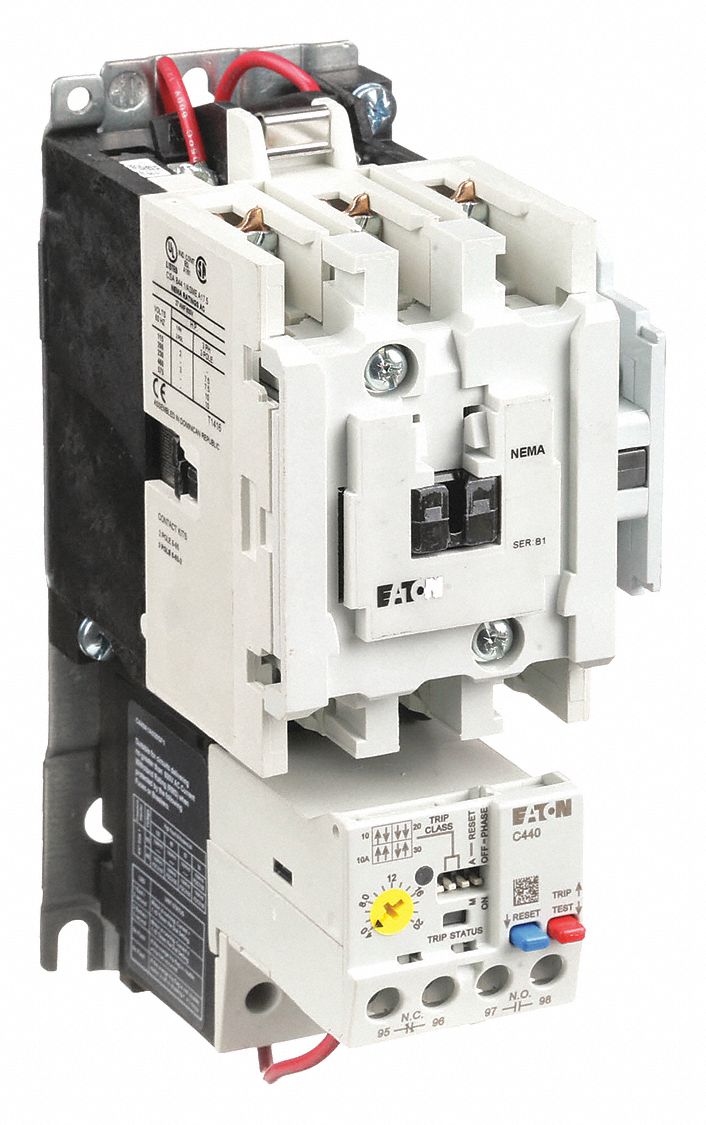

Eaton 3G-OTH-41842 — Technical Specifications
The EATON NEMA Magnetic Motor Starter is a non-reversing starter with an electronic overload, designed for three-phase applications. This NEMA Size 1 unit is rated for 27 A and features a 110/120V AC coil, a 1NO auxiliary contact, and a built-in pilot light for signaling. It requires no thermal units, as the electronic overload eliminates the need for traditional heater elements.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 1, 27 A |
| Brand | EATON |
| Phase | Three |
| Poles | 3 |
| AC Coil | 120V |
| Operator | None |
| Coil Voltage | 110/120V AC |
| Operator Controls | None |
| Signaling Features | Pilot Light |
| Auxiliary Contact Form | 1NO |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | AN19DN0A5E1P6 |
| Auxiliary Contacts Included | 1NO |
