Eaton 3G-OTH-41386 — Technical Specifications

Name: Eaton 3G-OTH-41386 EATON NEMA Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 2, 45 A, 120V AC Coil (MPN AN59GN0A5E045). Key specifications — Brand: EATON; Auxiliary Contact Form: 1NO; Coil Voltage: 110/120V AC; Phase: Three; Operator: None; Operator Controls: None; Auxiliary Contacts Included: 1NO; Signaling Features: Pilot Light.
Brand: Eaton

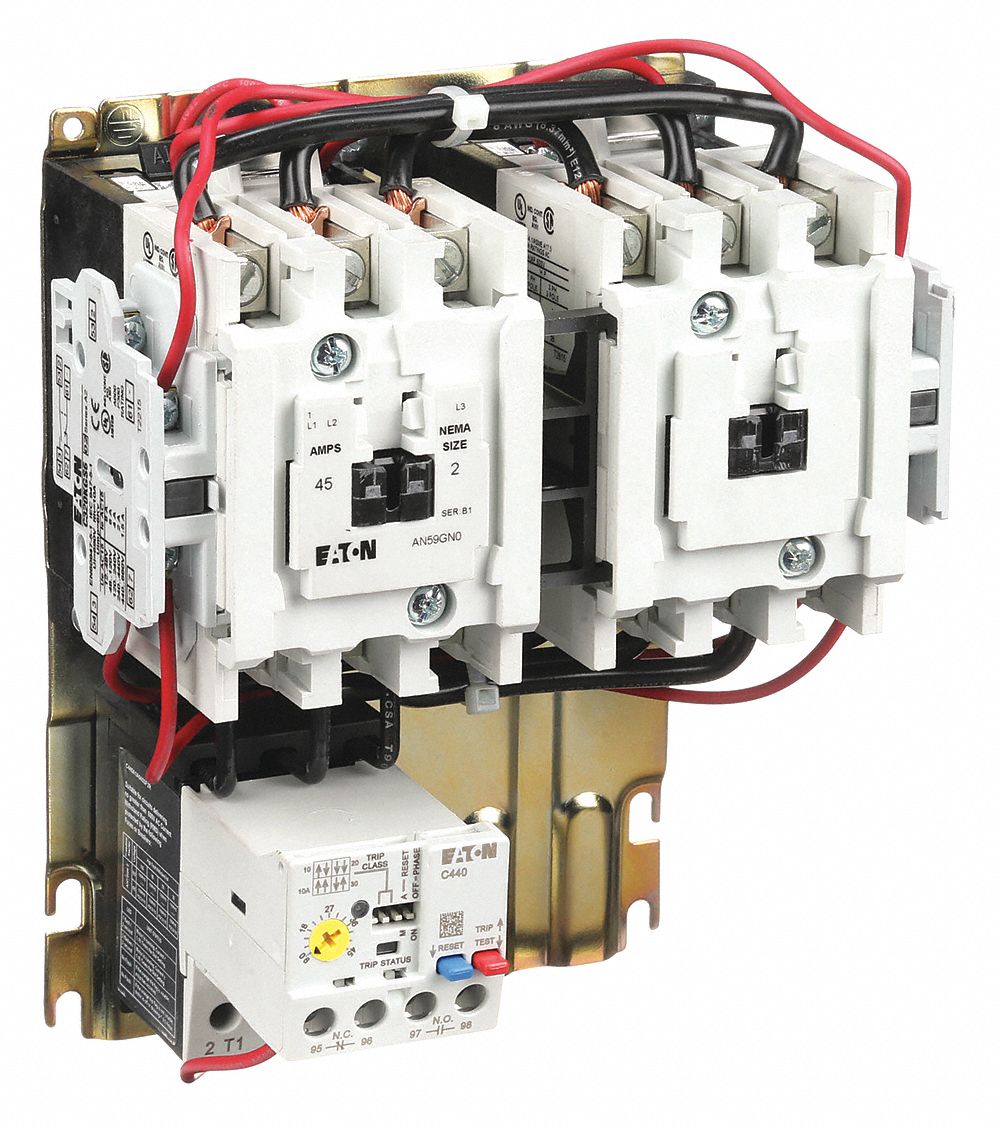

The EATON NEMA Magnetic Motor Starter: Reversing (SKU 6HGP9, MPN AN59GN0A5E045) is a three-phase reversing starter with electronic overloads, NEMA Size 2, rated 45 A. It features a 110/120V AC coil, a 1NO auxiliary contact, and a pilot light signaling feature. This unit requires no thermal units as it is designed for electronic overload protection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	NEMA Size 2, 45 A
Brand	EATON
Phase	Three
Poles	3
AC Coil	120V
Operator	None
Coil Voltage	110/120V AC
Operator Controls	None
Signaling Features	Pilot Light
Auxiliary Contact Form	1NO
Thermal Units Required	None (Not Applicable to Electronic Overloads)
Manufacturer Part Number	AN59GN0A5E045
Auxiliary Contacts Included	1NO
