Eaton 3G-OTH-44234 — Technical Specifications

Name: Eaton 3G-OTH-44234 EATON NEMA Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 3, 90 A, 24V AC Coil (MPN AN19KN0T5E100). Key specifications — Brand: EATON; Auxiliary Contact Form: 1NO; Coil Voltage: 24V AC; Phase: Three; Operator: None; Operator Controls: None; Auxiliary Contacts Included: 1NO; Signaling Features: Pilot Light.
Brand: Eaton

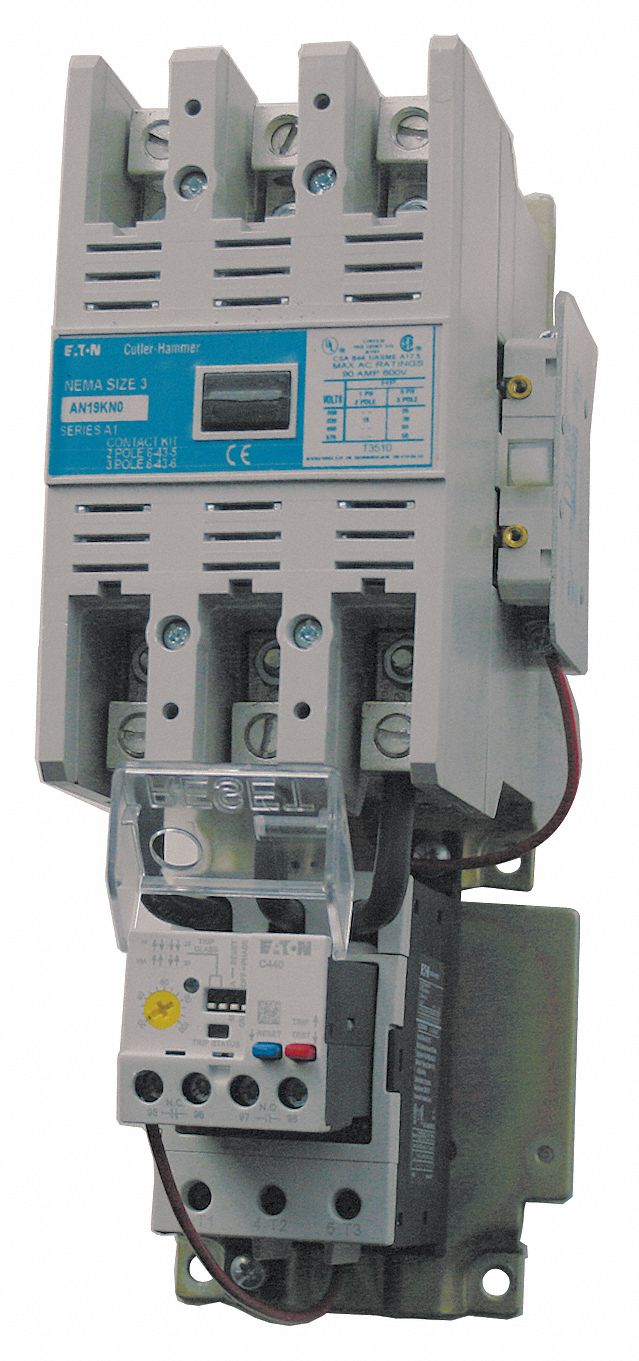

The EATON NEMA Magnetic Motor Starter is a non-reversing starter with an electronic overload, designed for three-phase applications. This NEMA Size 3 unit is rated for 90 A and features a 24V AC coil, a 1NO auxiliary contact, and a pilot light for signaling. It requires no thermal units, as the electronic overload eliminates the need for them.

View Product & Quote

Technical Specifications

Parameter	Value
Type	NEMA Size 3, 90 A
Brand	EATON
Phase	Three
Poles	3
AC Coil	24V
Operator	None
Coil Voltage	24V AC
Operator Controls	None
Signaling Features	Pilot Light
Auxiliary Contact Form	1NO
Thermal Units Required	None (Not Applicable to Electronic Overloads)
Manufacturer Part Number	AN19KN0T5E100
Auxiliary Contacts Included	1NO
