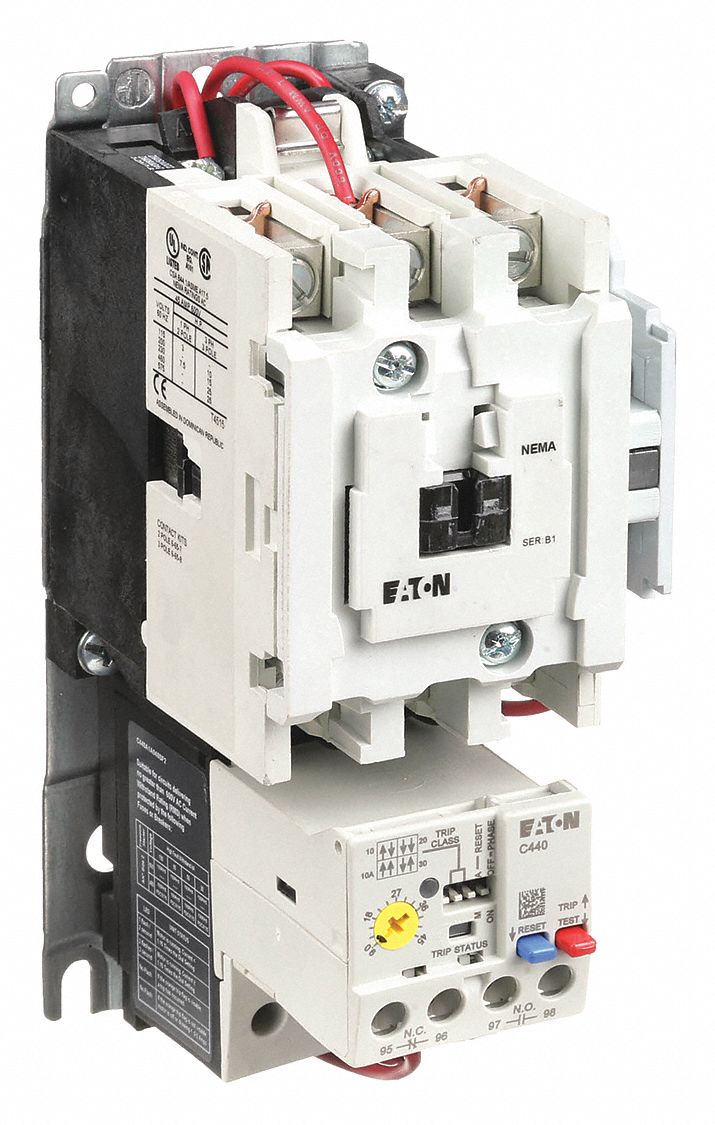

Eaton 3G-OTH-42677 — Technical Specifications

Name: Eaton 3G-OTH-42677 EATON NEMA Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 2, 45 A, 24V AC Coil (MPN AN19GN0T5E045). Key specifications — Brand: EATON; Auxiliary Contact Form: 1NO; Coil Voltage: 24V AC; Phase: Three; Operator: None; Operator Controls: None; Auxiliary Contacts Included: 1NO; Signaling Features: Pilot Light.
Brand: Eaton

The EATON NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, featuring three poles, NEMA Size 2, and a 45 A rating. It operates with a 24V AC coil, includes a 1NO auxiliary contact, and has a pilot light for signaling. This three-phase starter requires no thermal units, as electronic overloads are integrated.

View Product & Quote

Technical Specifications

Parameter	Value
Type	NEMA Size 2, 45 A
Brand	EATON
Phase	Three
Poles	3
AC Coil	24V
Operator	None
Coil Voltage	24V AC
Operator Controls	None
Signaling Features	Pilot Light
Auxiliary Contact Form	1NO
Thermal Units Required	None (Not Applicable to Electronic Overloads)
Manufacturer Part Number	AN19GN0T5E045
Auxiliary Contacts Included	1NO
