Eaton 3G-OTH-23688 — Technical Specifications

Name: Eaton 3G-OTH-23688 EATON Circuit Breaker: 80 A Amps, 18 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std, 3 Poles (MPN PDG13C0080TFFJ). Key specifications — Max. AIR Rating: 18 kA at 480V AC; Instantaneous Trip: Fixed; Phase Connection: ABC; Terminal Connection: Standard Line and Load Lugs; Frame Size: 125A/Frame 1.
Brand: Eaton

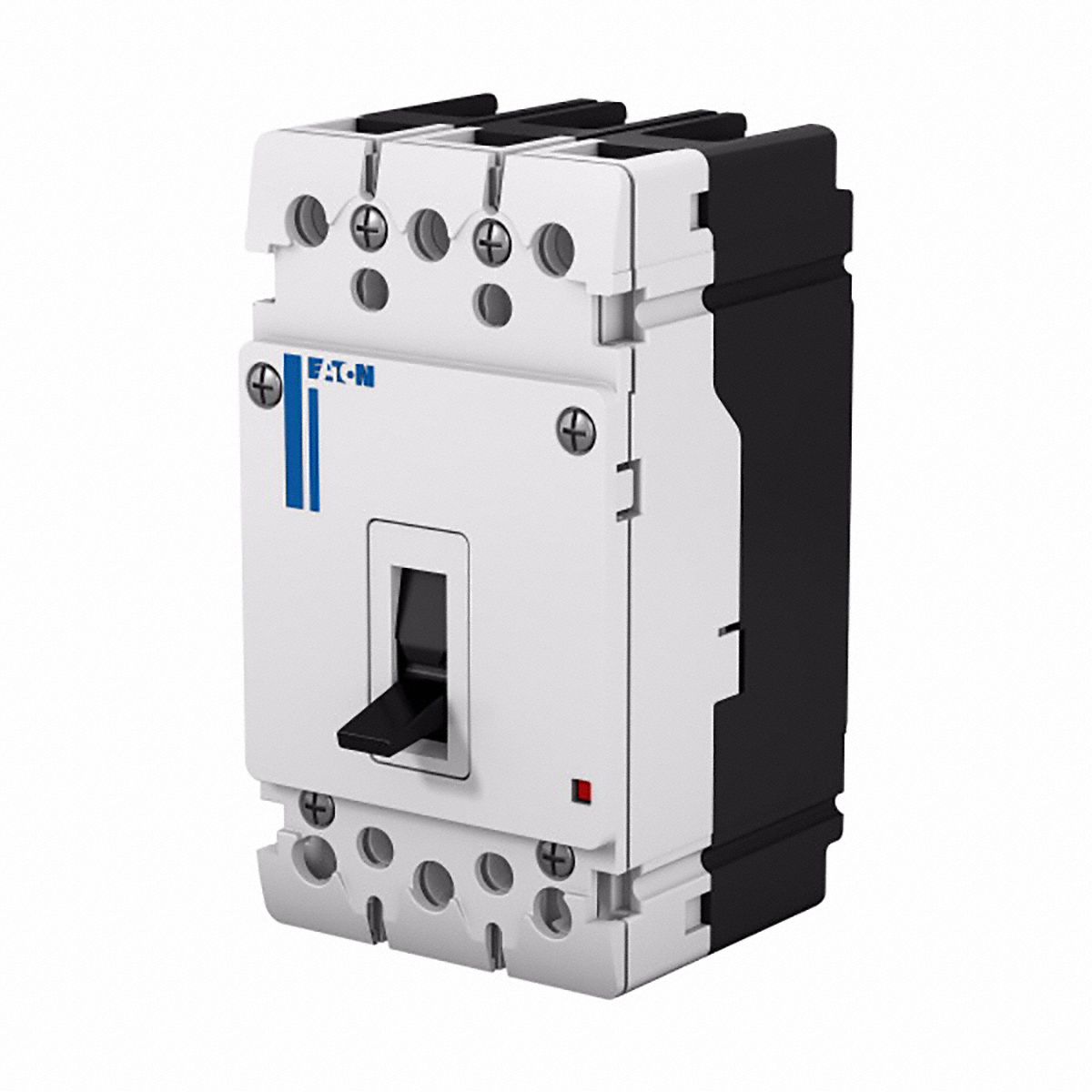

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HU63, MPN PDG13C0080TFFJ) is an 80 A, 3-pole unit with a 125A/Frame 1 frame size and a maximum AIR rating of 18 kA at 480V AC. It features a fixed instantaneous trip, ABC phase connection, and standard line and load lugs for terminal connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	18 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std
Poles	3
Frame Size	125A/Frame 1
Max. AIR Rating	18 kA at 480V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Standard Line and Load Lugs
Manufacturer Part Number	PDG13C0080TFFJ
