Eaton 3G-OTH-23901 — Technical Specifications

Name: Eaton 3G-OTH-23901 EATON Circuit Breaker: 500 A Amps, 35 kA at 480V AC, Fixed/Adj, ABC, Std Line and Load Lugs, Std (MPN PDG43M0500TFAJ). Key specifications — Max. AIR Rating: 35 kA at 480V AC; Instantaneous Trip: Fixed; Adjustable; Phase Connection: ABC; Terminal Connection: Standard Line and Load Lugs; Frame Size: 800A/Frame 4.
Brand: Eaton

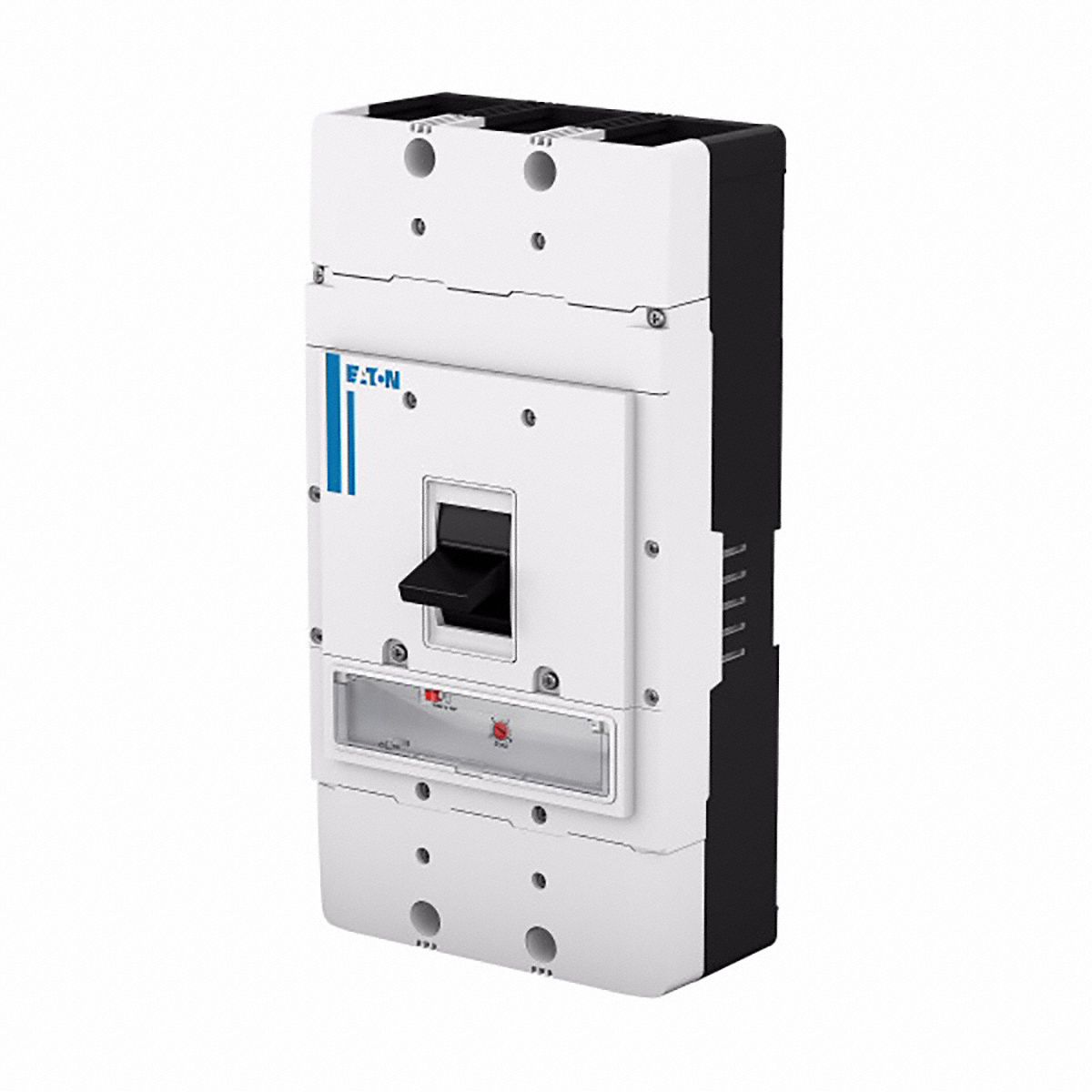

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HU52, MPN PDG43M0500TFAJ) is a 500 A rated device with an 800A/Frame 4 frame size. It features a maximum AIR rating of 35 kA at 480V AC, a fixed instantaneous trip, and ABC phase connection. The breaker includes standard line and load lugs for terminal connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	35 kA at 480V AC, Fixed/Adj, ABC, Std Line and Load Lugs, Std
Frame Size	800A/Frame 4
Max. AIR Rating	35 kA at 480V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Standard Line and Load Lugs
Manufacturer Part Number	PDG43M0500TFAJ
