Eaton 3G-OTH-23864 — Technical Specifications

Name: Eaton 3G-OTH-23864 EATON Circuit Breaker: 250 A Amps, 35 kA at 480V AC, Fixed/Adj, ABC, Std Line and Load Lugs, Std (MPN PDG33G0250TFAJ). Key specifications — Max. AIR Rating: 35 kA at 480V AC; Instantaneous Trip: Fixed; Adjustable; Phase Connection: ABC; Terminal Connection: Standard Line and Load Lugs; Frame Size: 600A/Frame 3.
Brand: Eaton

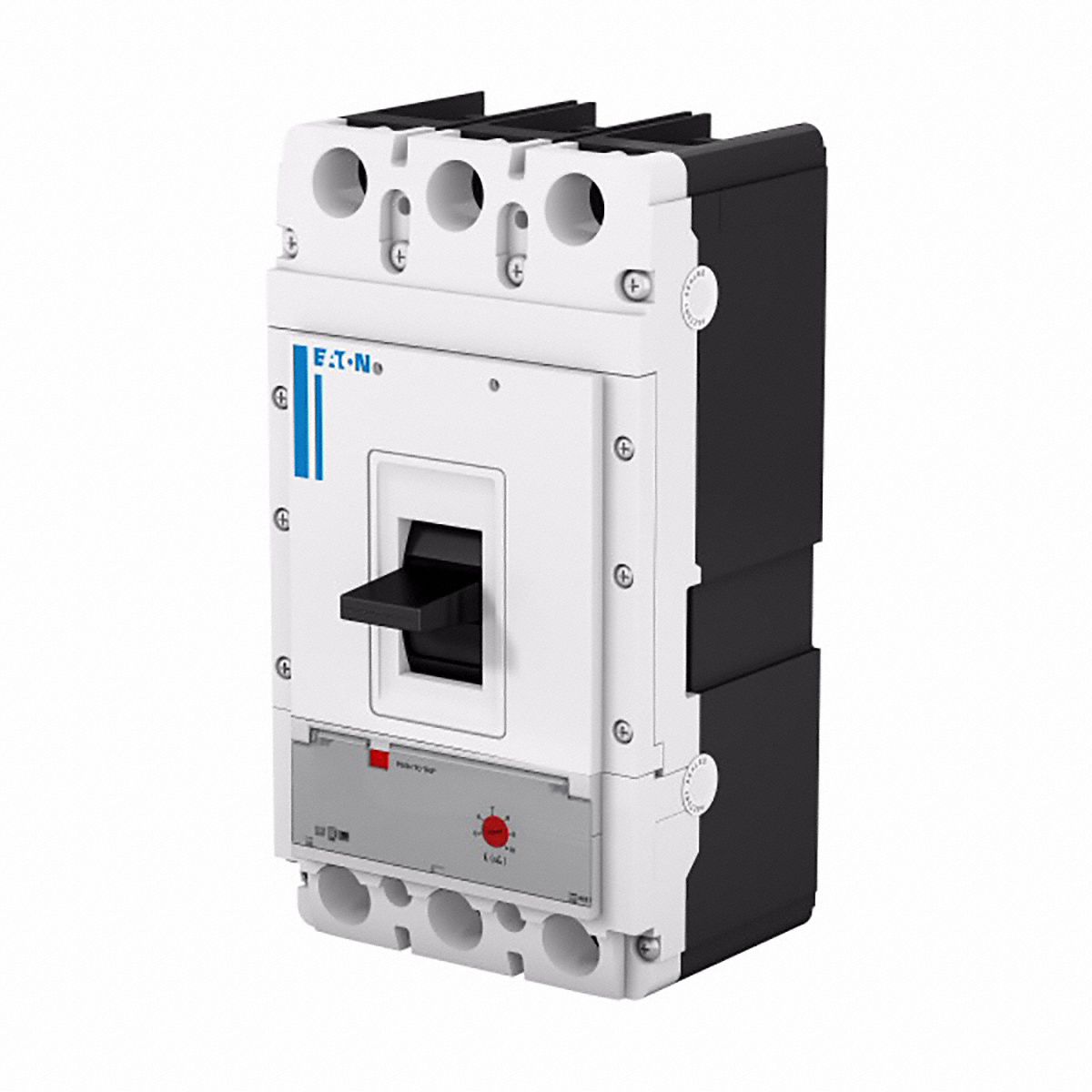

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HU39, MPN PDG33G0250TFAJ) is a 250 A rated device on a 600A/Frame 3 frame. It features a fixed instantaneous trip, a maximum AIR rating of 35 kA at 480V AC, and ABC phase connection. The unit comes with standard line and load lugs for terminal connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	35 kA at 480V AC, Fixed/Adj, ABC, Std Line and Load Lugs, Std
Frame Size	600A/Frame 3
Max. AIR Rating	35 kA at 480V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Standard Line and Load Lugs
Manufacturer Part Number	PDG33G0250TFAJ
