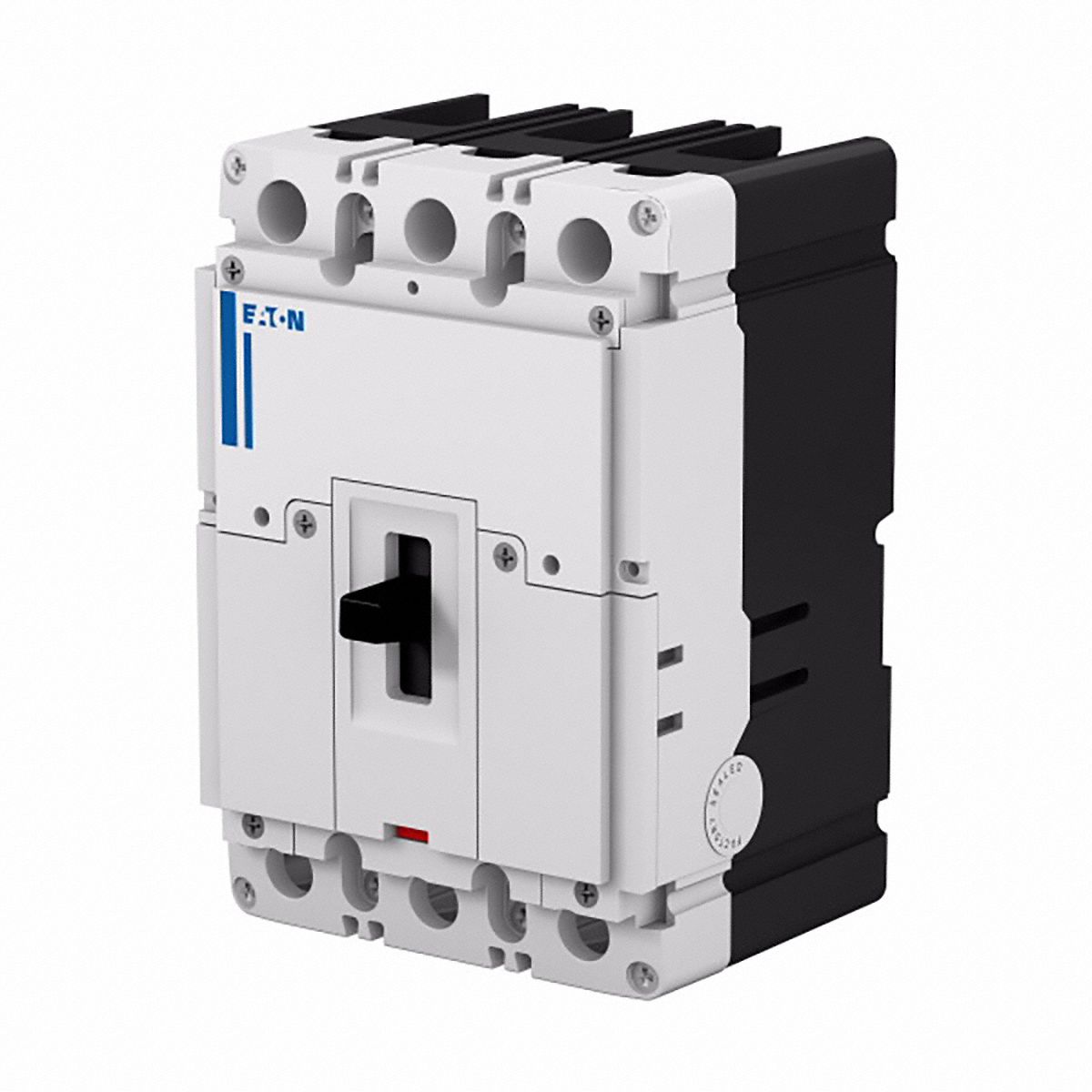

Eaton 3G-OTH-24242 — Technical Specifications

Name: Eaton 3G-OTH-24242 EATON Circuit Breaker: 100 A Amps, 50 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std (MPN PDG23K0100TFFJ). Key specifications — Max. AIR Rating: 50 kA at 480V AC; Instantaneous Trip: Fixed; Phase Connection: ABC; Terminal Connection: Standard Line and Load Lugs; Frame Size: 225A/Frame 2.
Brand: Eaton

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HU30, MPN PDG23K0100TFFJ) is a 100 A rated device with a 225A/Frame 2 frame size. It features a maximum AIR rating of 50 kA at 480V AC, a fixed instantaneous trip, ABC phase connection, and standard line and load lugs for terminal connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	50 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std
Frame Size	225A/Frame 2
Max. AIR Rating	50 kA at 480V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Standard Line and Load Lugs
Manufacturer Part Number	PDG23K0100TFFJ
