Eaton 3G-OTH-24394 — Technical Specifications

Name: Eaton 3G-OTH-24394 EATON Circuit Breaker: 100 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std (MPN PDG23F0100TFFJ). Key specifications — Max. AIR Rating: 25 kA at 480V AC; Instantaneous Trip: Fixed; Phase Connection: ABC; Terminal Connection: Standard Line and Load Lugs; Frame Size: 225A/Frame 2.
Brand: Eaton

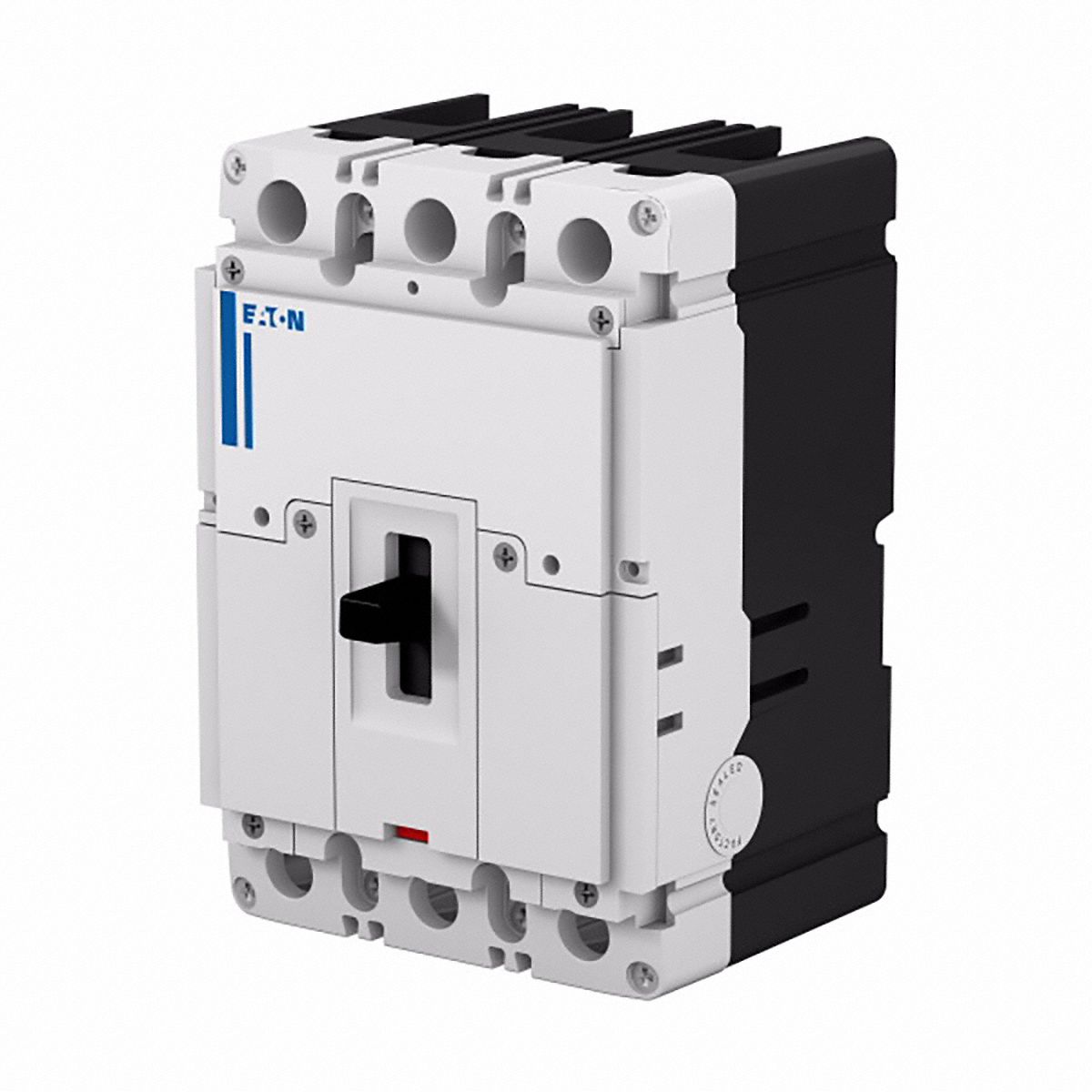

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HU08, MPN PDG23F0100TFFJ) is a 100 A rated device in a 225A/Frame 2 frame size. It features a maximum AIR rating of 25 kA at 480V AC, a fixed instantaneous trip, and ABC phase connection. The unit comes with standard line and load lugs for terminal connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std
Frame Size	225A/Frame 2
Max. AIR Rating	25 kA at 480V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Standard Line and Load Lugs
Manufacturer Part Number	PDG23F0100TFFJ
