Eaton 3G-OTH-24748 — Technical Specifications

Name: Eaton 3G-OTH-24748 EATON Circuit Breaker: 20 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Terminals Load Only, Std (MPN PDG23F0020TFFL). Key specifications — Max. AIR Rating: 25 kA at 480V AC; Instantaneous Trip: Fixed; Phase Connection: ABC; Terminal Connection: Standard Terminals Load Only; Frame Size: 225A/Frame 2.
Brand: Eaton

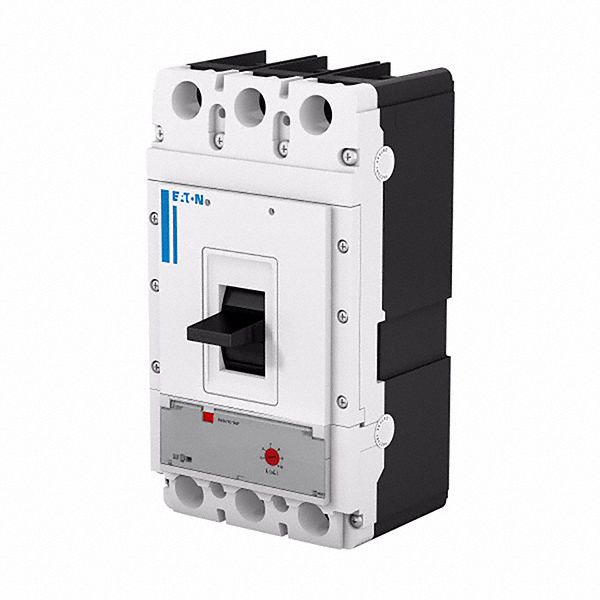

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT97, MPN PDG23F0020TFFL) is a 20 A rated device with a 225A/Frame 2 frame size. It features a maximum AIR rating of 25 kA at 480V AC, a fixed instantaneous trip, and ABC phase connection. The unit includes standard terminals for load-only connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	25 kA at 480V AC, Fixed, ABC, Std Terminals Load Only, Std
Frame Size	225A/Frame 2
Max. AIR Rating	25 kA at 480V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Standard Terminals Load Only
Manufacturer Part Number	PDG23F0020TFFL
