Eaton 3G-OTH-24552 — Technical Specifications

Name: Eaton 3G-OTH-24552 EATON Circuit Breaker: 90 A Amps, 35 kA at 480V AC, Fixed, AB, Std Terminals Load Only, Std, 2 Poles (MPN PDG22G0090TFFL). Key specifications — Max. AIR Rating: 35 kA at 480V AC; Instantaneous Trip: Fixed; Phase Connection: AB; Terminal Connection: Standard Terminals Load Only; Frame Size: 225A/Frame 2.
Brand: Eaton

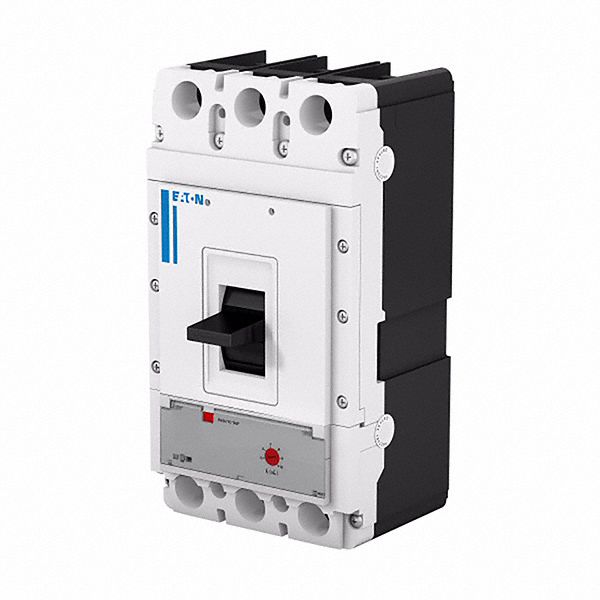

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT94, MPN PDG22G0090TFFL) is a 90 A, 2-pole unit with a 225A/Frame 2 frame size. It features a maximum AIR rating of 35 kA at 480V AC, a fixed instantaneous trip, and an AB phase connection. The breaker includes standard terminals load only for terminal connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	35 kA at 480V AC, Fixed, AB, Std Terminals Load Only, Std
Poles	2
Frame Size	225A/Frame 2
Max. AIR Rating	35 kA at 480V AC
Phase Connection	AB
Instantaneous Trip	Fixed
Terminal Connection	Standard Terminals Load Only
Manufacturer Part Number	PDG22G0090TFFL
