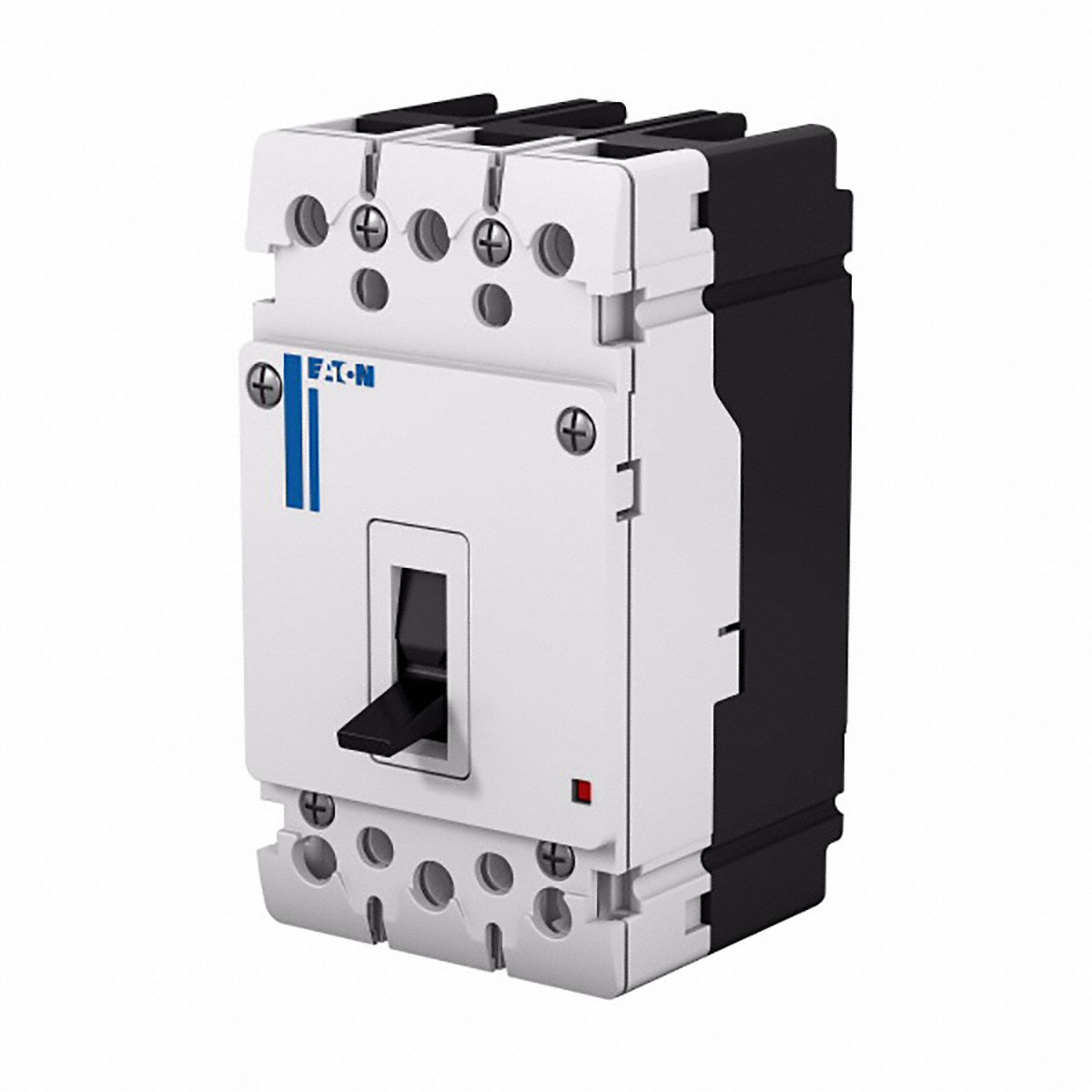

Eaton 3G-OTH-24630 — Technical Specifications

Name: Eaton 3G-OTH-24630 EATON Circuit Breaker: 125 A Amps, 65 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std (MPN PDG13M0125TFFJ). Key specifications — Max. AIR Rating: 65 kA at 480V AC; Instantaneous Trip: Fixed; Phase Connection: ABC; Terminal Connection: Standard Line and Load Lugs; Frame Size: 125A/Frame 1.
Brand: Eaton

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT66, MPN PDG13M0125TFFJ) is a 125 A, Frame 1 device with a maximum AIR rating of 65 kA at 480V AC. It features a fixed instantaneous trip, ABC phase connection, and standard line and load lugs for terminal connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	65 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std
Frame Size	125A/Frame 1
Max. AIR Rating	65 kA at 480V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Standard Line and Load Lugs
Manufacturer Part Number	PDG13M0125TFFJ
