Eaton 3G-OTH-23763 — Technical Specifications

Name: Eaton 3G-OTH-23763 EATON Circuit Breaker: 100 A Amps, 65 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std (MPN PDG13M0100TFFJ). Key specifications — Max. AIR Rating: 65 kA at 480V AC; Instantaneous Trip: Fixed; Phase Connection: ABC; Terminal Connection: Standard Line and Load Lugs; Frame Size: 125A/Frame 1.
Brand: Eaton

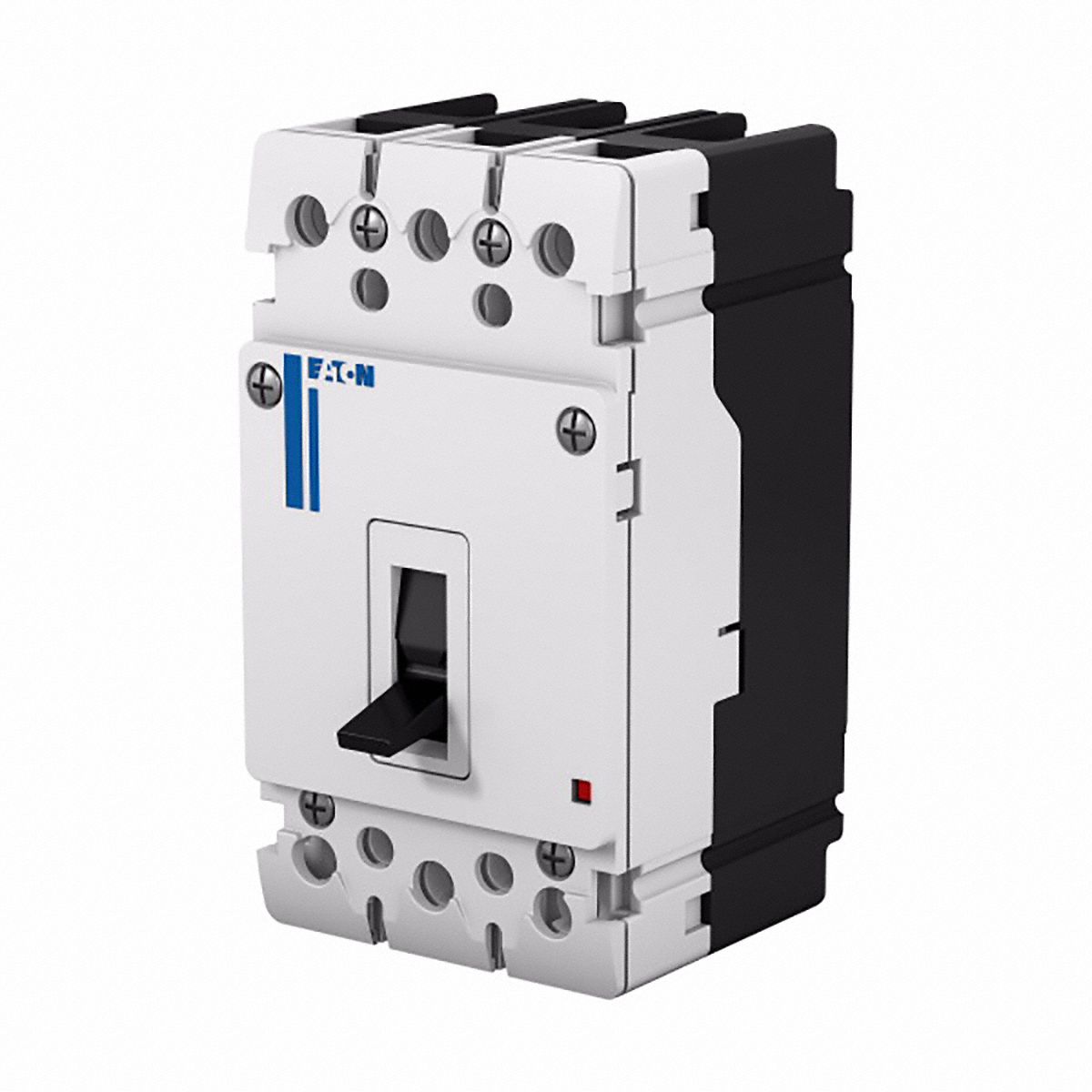

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT65, MPN PDG13M0100TFFJ) is a 100 A rated device with a 125A/Frame 1 frame size. It provides a maximum AIR rating of 65 kA at 480V AC, features a fixed instantaneous trip, and uses ABC phase connection with standard line and load lugs.

View Product & Quote

Technical Specifications

Parameter	Value
Type	65 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std
Frame Size	125A/Frame 1
Max. AIR Rating	65 kA at 480V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Standard Line and Load Lugs
Manufacturer Part Number	PDG13M0100TFFJ
