Eaton 3G-OTH-24196 — Technical Specifications

Name: Eaton 3G-OTH-24196 EATON Circuit Breaker: 45 A Amps, 65 kA at 480V AC, Fixed, A, Std Line and Load Lugs, Std, 1 Poles (MPN PDG11M0045TFFJ). Key specifications — Max. AIR Rating: 65 kA at 480V AC; Instantaneous Trip: Fixed; Phase Connection: A; Terminal Connection: Standard Line and Load Lugs; Frame Size: 125A/Frame 1.
Brand: Eaton

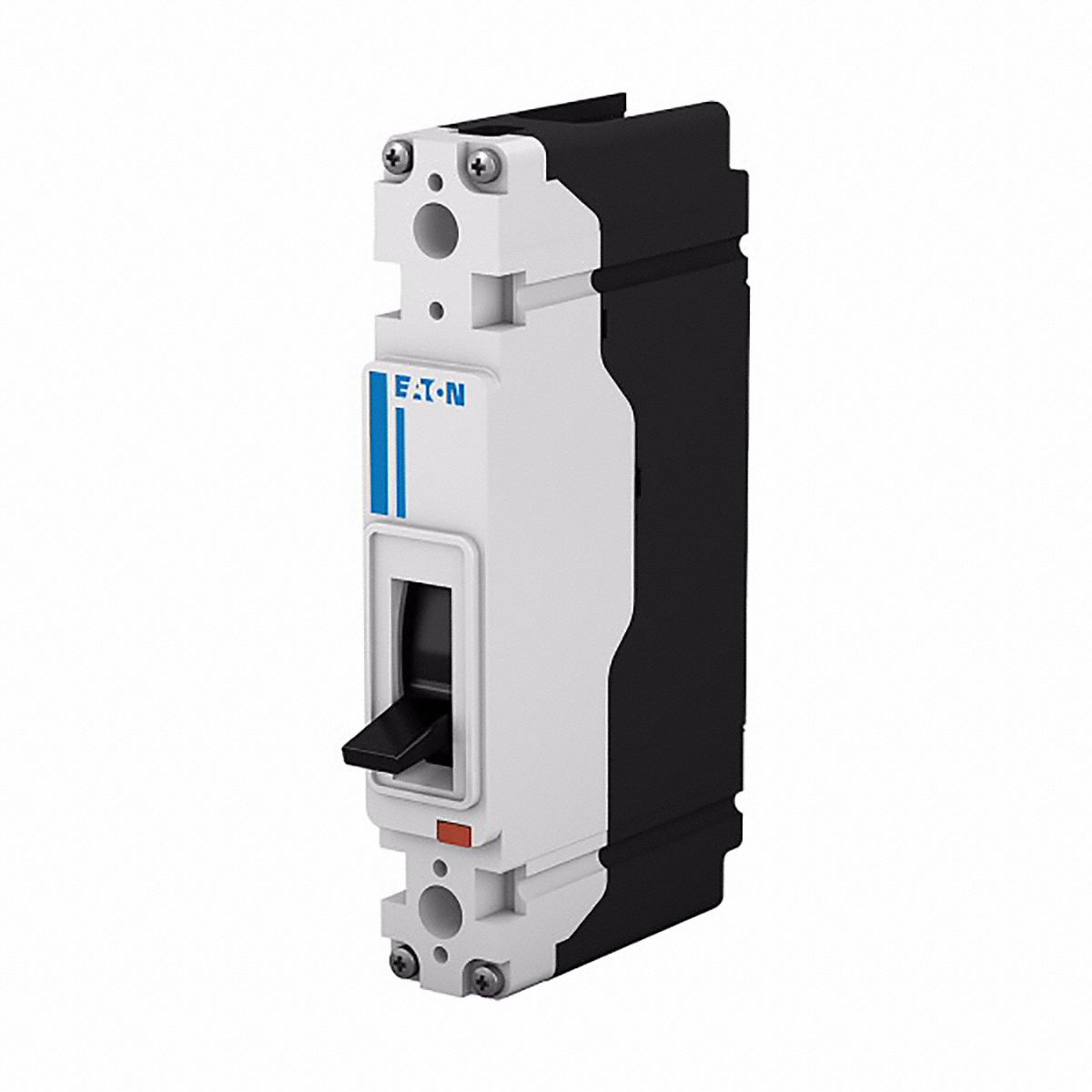

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT23, MPN PDG11M0045TFFJ) is a 45 A, 1-pole unit with a 125A/Frame 1 frame size and a maximum AIR rating of 65 kA at 480V AC. It features a fixed instantaneous trip, A phase connection, and standard line and load lugs for terminal connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	65 kA at 480V AC, Fixed, A, Std Line and Load Lugs, Std
Poles	1
Frame Size	125A/Frame 1
Max. AIR Rating	65 kA at 480V AC
Phase Connection	A
Instantaneous Trip	Fixed
Terminal Connection	Standard Line and Load Lugs
Manufacturer Part Number	PDG11M0045TFFJ
