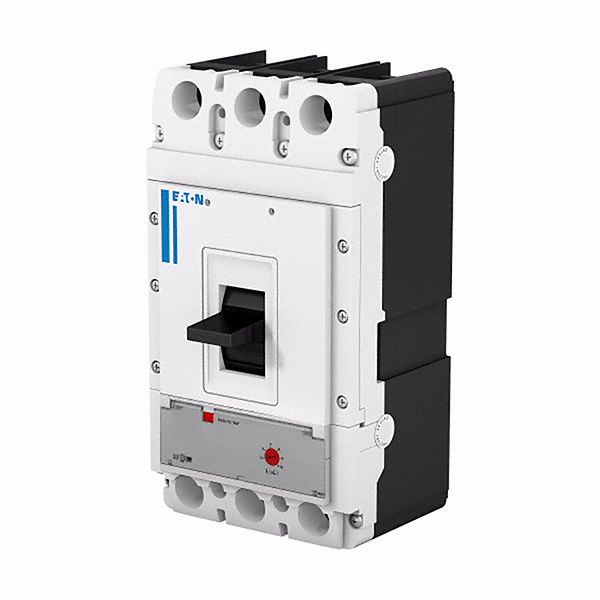

Eaton 3G-OTH-23826 — Technical Specifications

Name: Eaton 3G-OTH-23826 EATON Circuit Breaker: 200 A Amps, 65 kA at 240V AC, Fixed, AB, Std Terminals Load Only, Std (MPN PDD22G0200TFFL). Key specifications — Max. AIR Rating: 65 kA at 240V AC; Instantaneous Trip: Fixed; Phase Connection: AB; Terminal Connection: Standard Terminals Load Only; Frame Size: 225A/Frame 2.
Brand: Eaton

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT08, MPN PDD22G0200TFFL) is a 200 A rated device with a 225A/Frame 2 frame size. It features a maximum AIR rating of 65 kA at 240V AC, a fixed instantaneous trip, and an AB phase connection. The unit comes with standard terminals for load-only connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	65 kA at 240V AC, Fixed, AB, Std Terminals Load Only, Std
Frame Size	225A/Frame 2
Max. AIR Rating	65 kA at 240V AC
Phase Connection	AB
Instantaneous Trip	Fixed
Terminal Connection	Standard Terminals Load Only
Manufacturer Part Number	PDD22G0200TFFL
