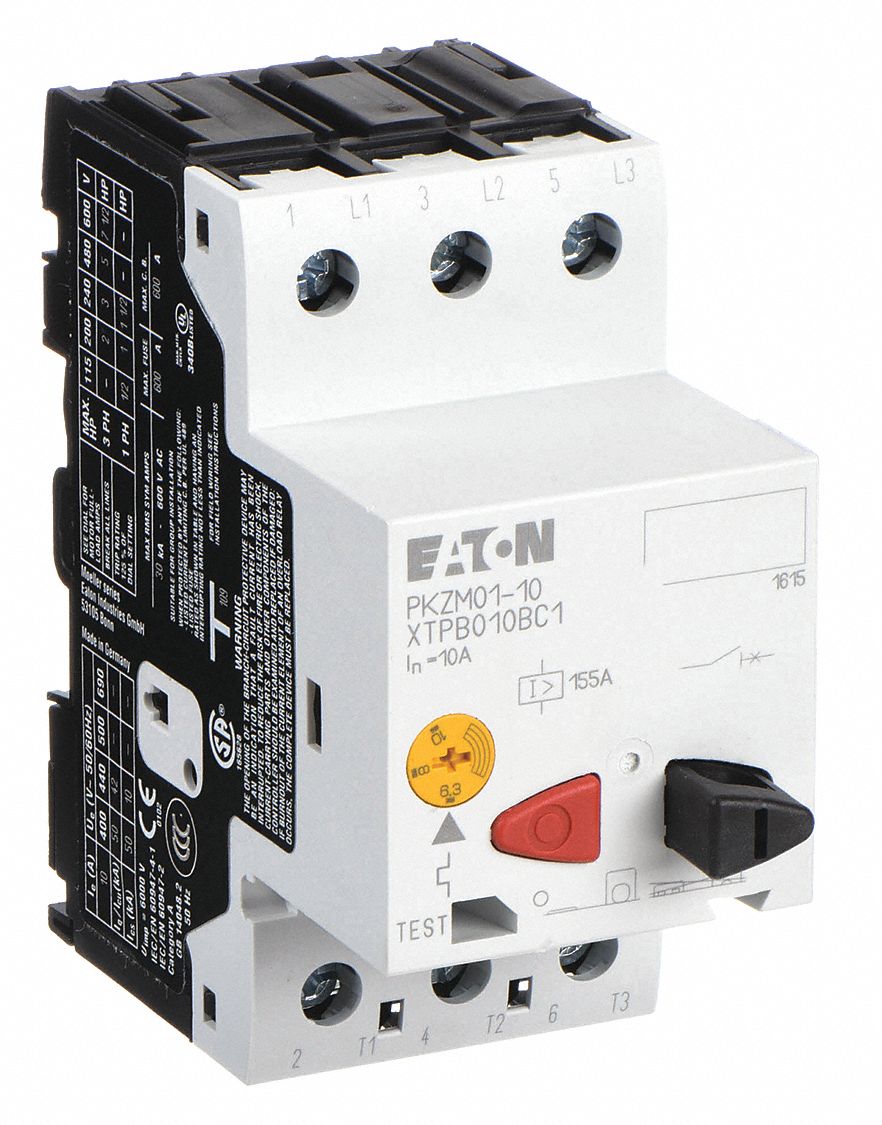

Eaton 3G-OTH-42017 — Technical Specifications
The EATON Manual Motor Protector is a non-reversing starter with thermal overloads, featuring a 45mm (B Frame) width, a maximum voltage rating of 600V AC, and 3 poles rated at 10 A. It includes integrated thermal units, eliminating the need for separate thermal units, and is operated via push button control.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 10 A, Thermal Protection, Push Button |
| Brand | EATON |
| Poles | 3 |
| Frame Size (Width) | 45mm (B Frame) |
| Maximum Voltage Rating | 600V AC |
| Thermal Units Required | None (Starter Includes Integrated Thermal Units) |
| Manufacturer Part Number | XTPB010BC1 |
