Eaton 3G-OTH-40034 — Technical Specifications

Name: Eaton 3G-OTH-40034 EATON Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, Frame Size A (MPN XTOM001AC1). Key specifications — Brand: EATON; Auxiliary Contact Form: 1NO/1NC; Compatible Contactor Series: XT Mini Contactors; Frame Size: A; Phase Loss Sensitivity: Yes; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: Frame Size A.
Brand: Eaton

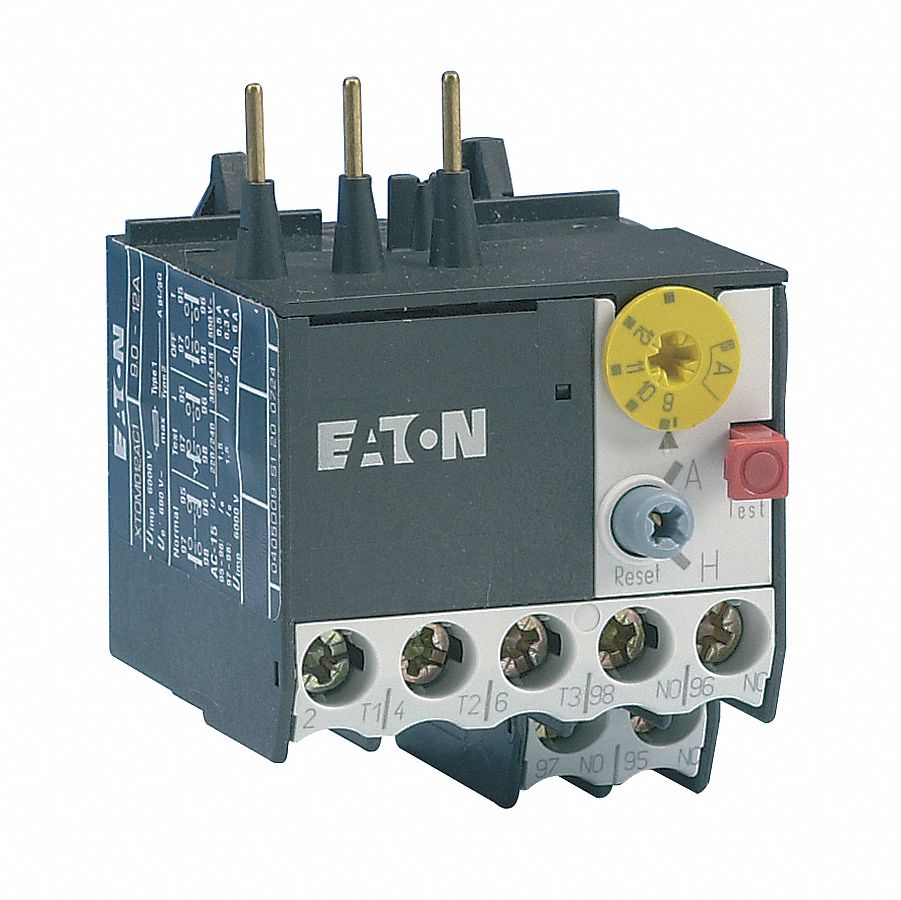

The EATON Overload Relay: Thermal Protection (SKU 4WXD6, MPN XTOM001AC1) is an IEC thermal overload relay with Frame Size A, designed for use with EATON XT Mini Contactors of the same frame size. It features 1NO/1NC auxiliary contacts, phase loss sensitivity, and integrated bimetallic elements, eliminating the need for separate thermal units.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1NO/1NC, Phase Loss Sensitivity, Frame Size A
Brand	EATON
Poles	3
Frame Size	A
Compatible Contactors	Frame Size A
Auxiliary Contact Form	1NO/1NC
Phase Loss Sensitivity	Yes
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	XTOM001AC1
Compatible Contactor Series	XT Mini Contactors
