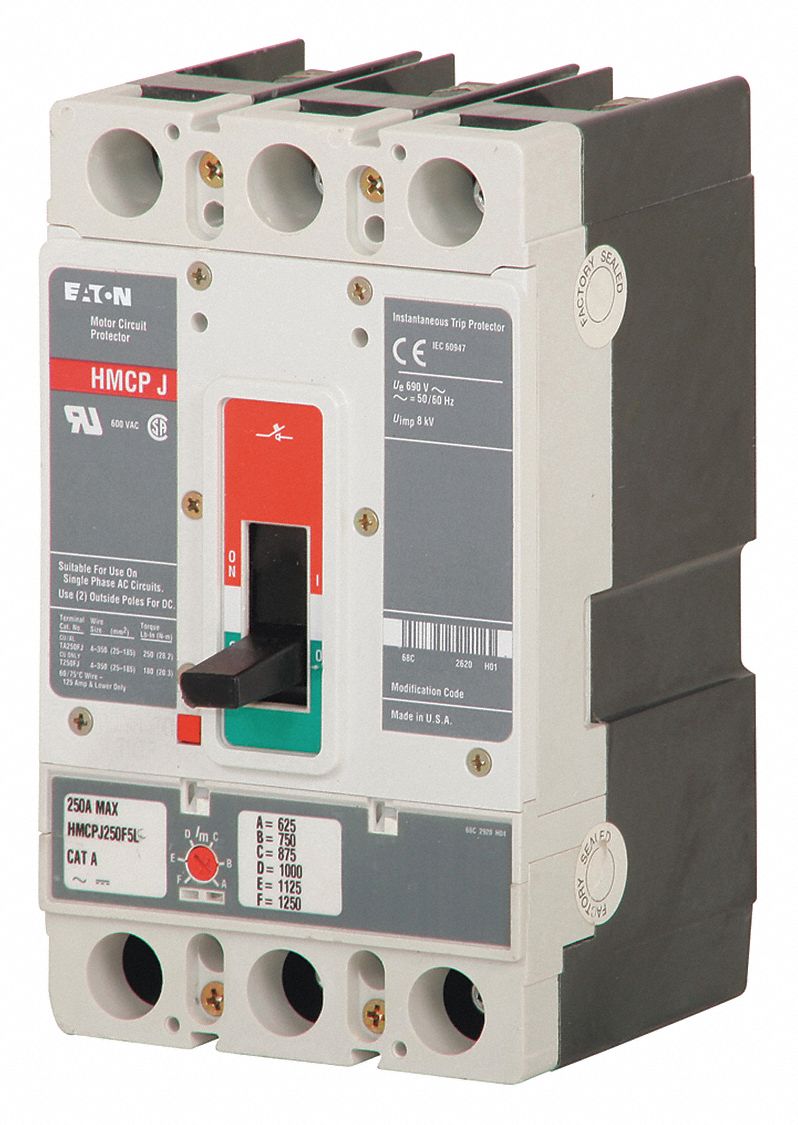

Eaton 3G-OTH-23768 — Technical Specifications

Name: Eaton 3G-OTH-23768 EATON Molded Case Circuit Breaker: 250 A Amps, 65kA at 600V AC, Fixed, ABC, Line/Load Lug, Std, HMCP (MPN HMCPJ250F5L). Key specifications — Series: HMCP; Max. AIR Rating: 65kA at 600V AC; Instantaneous Trip: Fixed; Phase Connection: ABC; Terminal Connection: Line/Load Lug; Frame Size: 250A/JG.
Brand: Eaton

The EATON HMCPJ250F5L is a molded case circuit breaker from the HMCP series, designed as a motor circuit protector with a 250 A frame size (250A/JG). It features a fixed instantaneous trip, a maximum AIR rating of 65kA at 600V AC, and ABC phase connection, with line/lug terminal connections.

View Product & Quote

Technical Specifications

Parameter	Value
Type	65kA at 600V AC, Fixed, ABC, Line/Load Lug, Std, HMCP
Series	HMCP
Frame Size	250A/JG
Max. AIR Rating	65kA at 600V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Line/Load Lug
Manufacturer Part Number	HMCPJ250F5L
