Eaton 3G-OTH-23714 — Technical Specifications

Name: Eaton 3G-OTH-23714 EATON Molded Case Circuit Breaker: 150 A Amps, 65kA at 600V AC, Fixed, ABC, Line/Load Lug, Std, HMCP (MPN HMCP150U4C). Key specifications — Series: HMCP; Max. AIR Rating: 65kA at 600V AC; Instantaneous Trip: Fixed; Phase Connection: ABC; Terminal Connection: Line/Load Lug; Frame Size: 250A/J.
Brand: Eaton

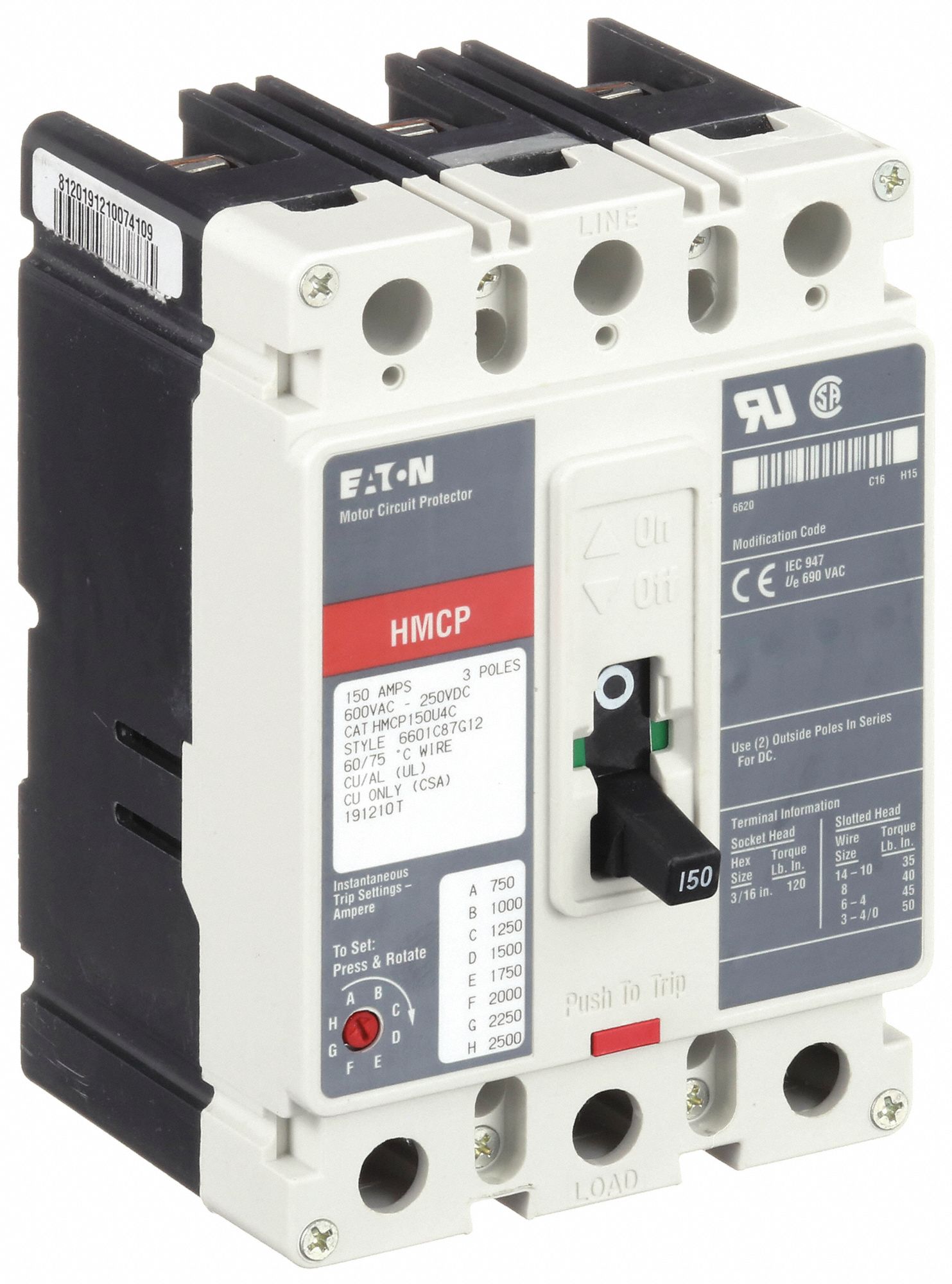

The EATON HMCP150U4C is a 150 A molded case circuit breaker from the HMCP series of motor circuit protectors. It features a 250A/J frame size, a maximum AIR rating of 65kA at 600V AC, fixed instantaneous trip, ABC phase connection, and line/load lug terminals.

View Product & Quote

Technical Specifications

Parameter	Value
Type	65kA at 600V AC, Fixed, ABC, Line/Load Lug, Std, HMCP
Series	HMCP
Frame Size	250A/J
Max. AIR Rating	65kA at 600V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Line/Load Lug
Manufacturer Part Number	HMCP150U4C
