Eaton 3G-OTH-23647 — Technical Specifications

Name: Eaton 3G-OTH-23647 EATON Molded Case Circuit Breaker: 7 A Amps, 65kA at 600V AC, Fixed, ABC, Line/Load Lug, Std, HMCP (MPN HMCP007C0C). Key specifications — Series: HMCP; Max. AIR Rating: 65kA at 600V AC; Instantaneous Trip: Fixed; Phase Connection: ABC; Terminal Connection: Line/Load Lug; Frame Size: 250A/J.
Brand: Eaton

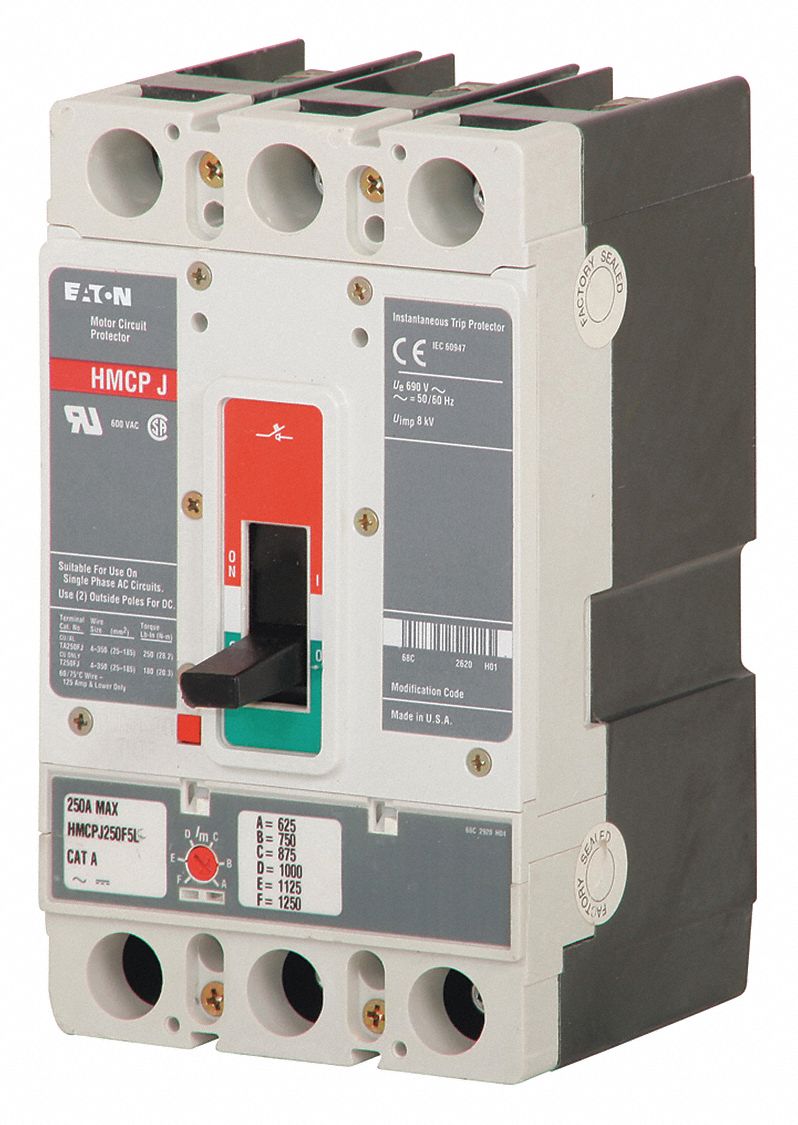

The EATON HMCP007C0C is a 7 Amp motor circuit protector from the HMCP series, featuring a 250A/J frame size and a maximum AIR rating of 65kA at 600V AC. It offers a fixed instantaneous trip setting and supports ABC phase connection with line/load lug terminals.

View Product & Quote

Technical Specifications

Parameter	Value
Type	65kA at 600V AC, Fixed, ABC, Line/Load Lug, Std, HMCP
Series	HMCP
Frame Size	250A/J
Max. AIR Rating	65kA at 600V AC
Phase Connection	ABC
Instantaneous Trip	Fixed
Terminal Connection	Line/Load Lug
Manufacturer Part Number	HMCP007C0C
