Eaton 3G-OTH-40732 — Technical Specifications

Name: Eaton 3G-OTH-40732 EATON NEMA Combination Starter: Fusible Disconnect, 3 Poles, NEMA Size 2, 120V AC, NEMA-Rated 1 (MPN ECN1821BJD-R63/D). Key specifications — Includes Pilot Light: Yes; Maximum Voltage Rating: 250V AC; Brand: EATON; Phase: Three; Coil Voltage: 220/240V AC; Control Transformer: Yes; Control Transformer Voltage: 240/480V AC Primary, 120V AC Secondary; For Fuse Class: Class R.
Brand: Eaton

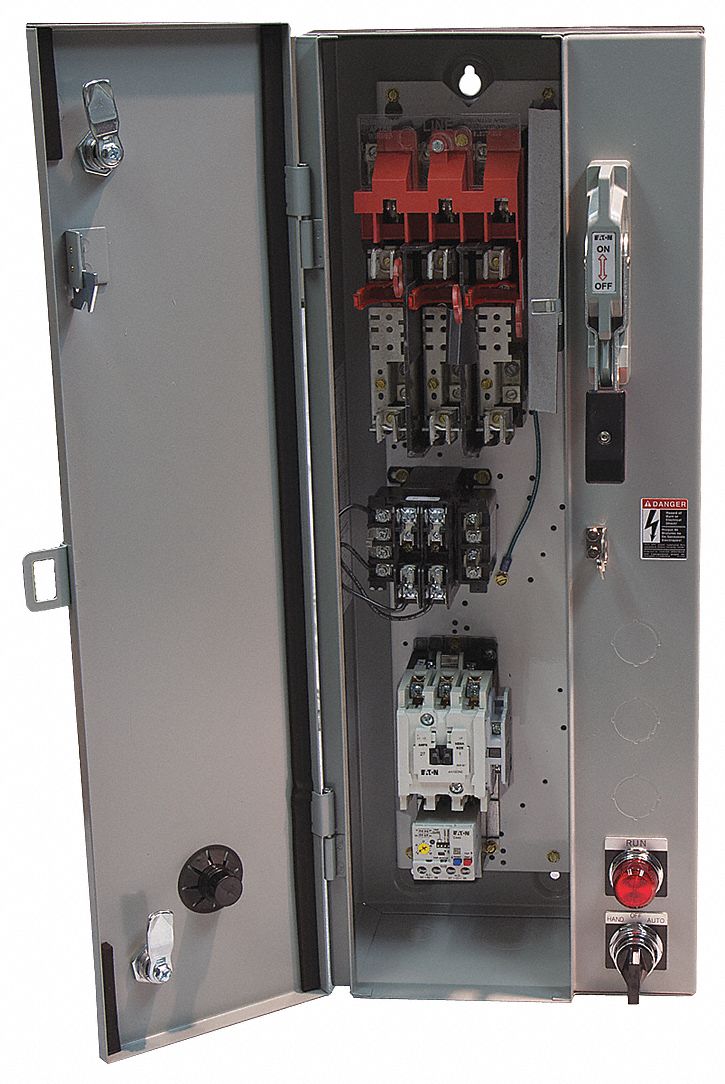

The EATON NEMA Combination Starter is a fusible disconnect starter with electronic overloads, part of the Freedom series. This three-phase, 3-pole unit features a Hand/Off/Auto selector switch, a 220/240V AC coil, and a maximum voltage rating of 250V AC. It includes a control transformer (240/480V AC primary, 120V AC secondary), a pilot light, and auxiliary contacts, and is designed for Class R fuses with screw terminals.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
Type	NEMA Size 2, NEMA-Rated 1
Brand	EATON
Phase	Three
Poles	3
Series	Freedom
Poles/Phase	3 Pole / Three Phase
Coil Voltage	220/240V AC
Operator Type	Hand/Off/Auto (Selector Switch)
For Fuse Class	Class R
Control Transformer	Yes
Includes Pilot Light	Yes
Maximum Voltage Rating	250V AC
Thermal Units Required	None (Not Applicable to Electronic Overloads)
Manufacturer Part Number	ECN1821BJD-R63/D
Terminal Connection Type	Screw Terminals
Control Transformer Voltage	240/480V AC Primary, 120V AC Secondary
Includes Auxiliary Contacts	Yes
