Eaton 3G-OTH-41240 — Technical Specifications

Name: Eaton 3G-OTH-41240 EATON NEMA Combination Starter: Fusible Disconnect, 3 Poles, NEMA Size 0, 120V AC, NEMA-Rated 1 (MPN ECN1801EJB-R63/B). Key specifications — Includes Pilot Light: Yes; Maximum Voltage Rating: 250V AC; Brand: EATON; Phase: Three; Coil Voltage: 208V AC; Control Transformer: Yes; Control Transformer Voltage: 208V AC Primary, 120V AC Secondary; For Fuse Class: Class R.
Brand: Eaton

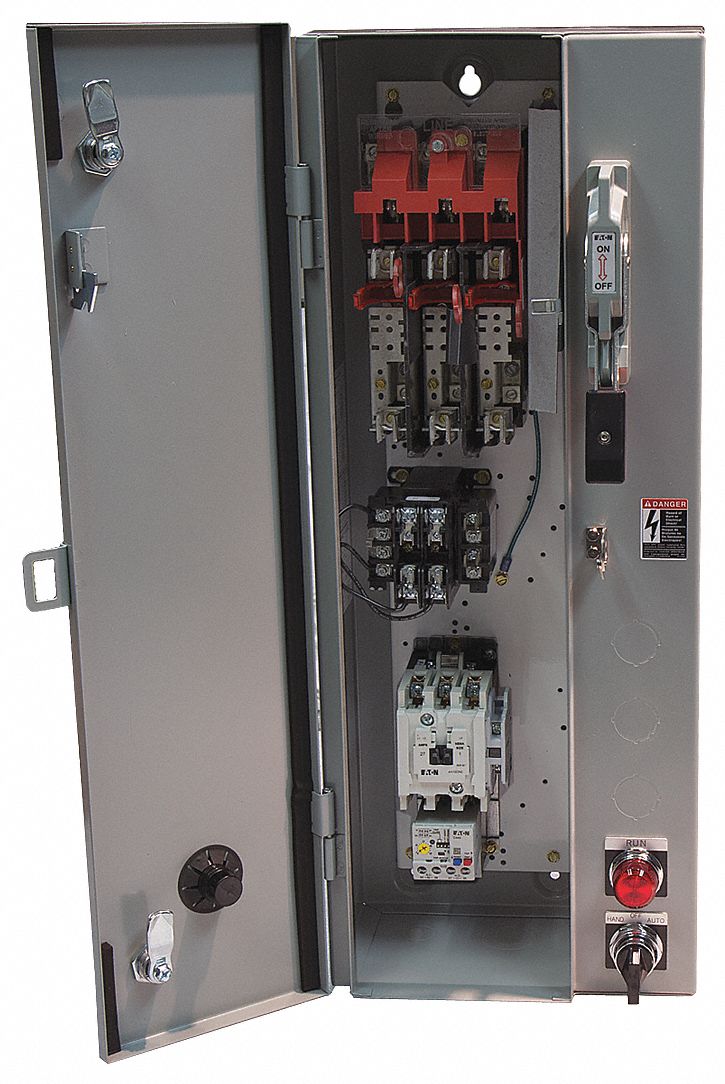

The EATON NEMA Combination Starter: Fusible Disconnect (SKU 45MY96, MPN ECN1801EJB-R63/B) is a three-phase fusible starter with an electronic overload, part of the Freedom series. It features a 208V AC coil voltage, a Hand/Off/Auto selector switch operator, and a control transformer with 208V AC primary and 120V AC secondary. This NEMA Size 0 unit is rated for 250V AC maximum, accepts Class R fuses, and includes a pilot light and auxiliary contacts with screw terminals.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
Type	NEMA Size 0, NEMA-Rated 1
Brand	EATON
Phase	Three
Poles	3
Series	Freedom
Poles/Phase	3 Pole / Three Phase
Coil Voltage	208V AC
Operator Type	Hand/Off/Auto (Selector Switch)
For Fuse Class	Class R
Control Transformer	Yes
Includes Pilot Light	Yes
Maximum Voltage Rating	250V AC
Thermal Units Required	None (Not Applicable to Electronic Overloads)
Manufacturer Part Number	ECN1801EJB-R63/B
Terminal Connection Type	Screw Terminals
Control Transformer Voltage	208V AC Primary, 120V AC Secondary
Includes Auxiliary Contacts	Yes
