Eaton 3G-OTH-41555 — Technical Specifications

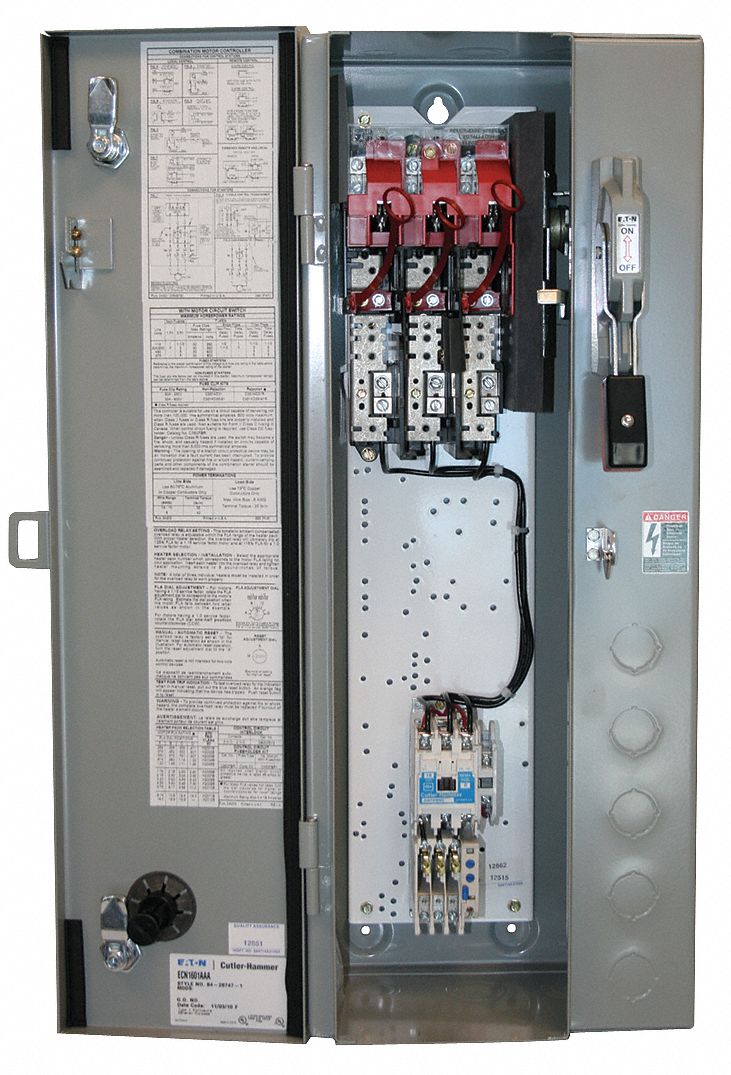

The EATON NEMA Combination Starter: Fusible Disconnect (SKU 40Z932, MPN ECN1618DAC-R63/D) is a three-phase fusible starter with electronic overloads from the Freedom series. It is a 3-pole, NEMA Size 1 unit rated for 600V AC maximum, with a coil voltage of 550/575V AC and Class R fuse compatibility. This model includes screw terminals and auxiliary contacts, but has no operator, pilot light, or control transformer.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | NEMA Size 1, NEMA-Rated 12 |
| Brand | EATON |
| Phase | Three |
| Poles | 3 |
| Series | Freedom |
| Poles/Phase | 3 Pole / Three Phase |
| Coil Voltage | 550/575V AC |
| Operator Type | No Operator |
| For Fuse Class | Class R |
| Control Transformer | No |
| Includes Pilot Light | No |
| Maximum Voltage Rating | 600V AC |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | ECN1618DAC-R63/D |
| Terminal Connection Type | Screw Terminals |
| Includes Auxiliary Contacts | Yes |
