Eaton 3G-OTH-40855 — Technical Specifications

Name: Eaton 3G-OTH-40855 EATON NEMA Combination Starter: Fusible Disconnect, 3 Poles, NEMA Size 3, 480V AC, NEMA-Rated 3R (MPN ECN1638CAG-R63/EL30). Key specifications — Includes Pilot Light: No; Maximum Voltage Rating: 600V AC; Brand: EATON; Phase: Three; Coil Voltage: 440/460V AC; Control Transformer: No; For Fuse Class: Class R; Series: Freedom.
Brand: Eaton

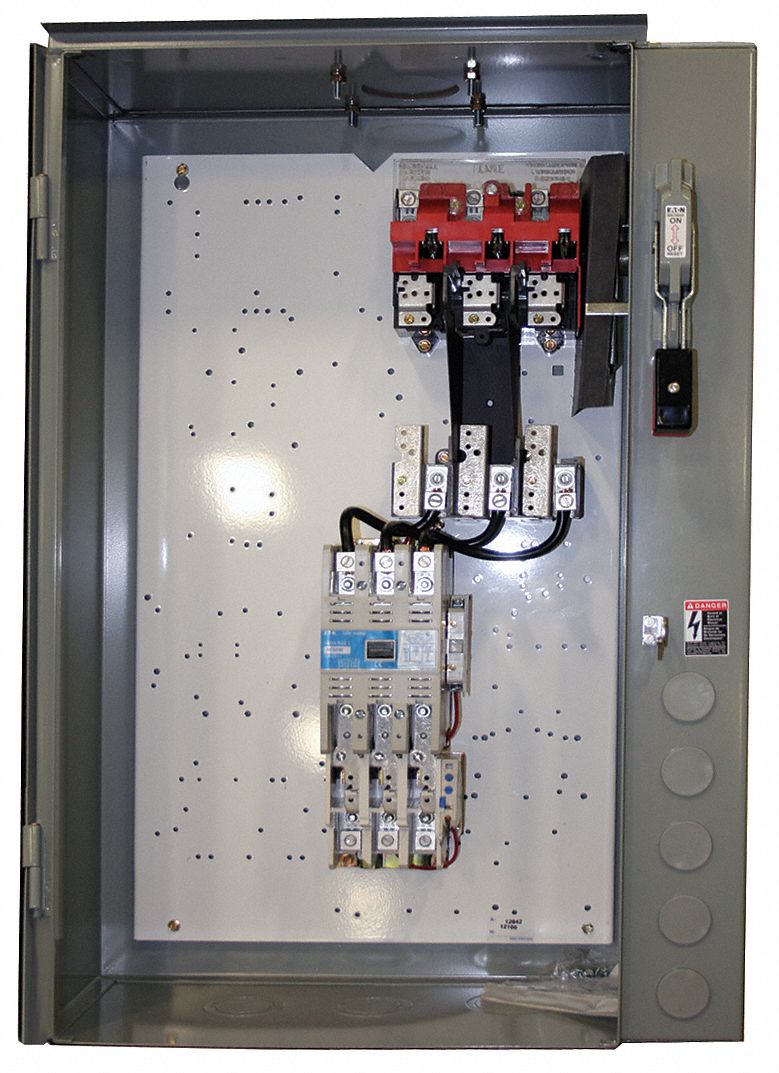

The EATON NEMA Combination Starter: Fusible Disconnect (MPN ECN1638CAG-R63/EL30) is a three-phase, 3-pole fusible starter with electronic overloads from the Freedom series. It is rated for a maximum voltage of 600V AC, with a coil voltage of 440/460V AC, and is designed for Class R fuses. This unit features screw terminals, includes auxiliary contacts, and does not include a pilot light or control transformer.

View Product & Quote

Technical Specifications

Parameter	Value
AC	480V
Type	NEMA Size 3, NEMA-Rated 3R
Brand	EATON
Phase	Three
Poles	3
Series	Freedom
Poles/Phase	3 Pole / Three Phase
Coil Voltage	440/460V AC
Operator Type	No Operator
For Fuse Class	Class R
Control Transformer	No
Includes Pilot Light	No
Maximum Voltage Rating	600V AC
Thermal Units Required	None (Not Applicable to Electronic Overloads)
Manufacturer Part Number	ECN1638CAG-R63/EL30
Terminal Connection Type	Screw Terminals
Includes Auxiliary Contacts	Yes
