Eaton 3G-OTH-41493 — Technical Specifications

Name: Eaton 3G-OTH-41493 EATON NEMA Combination Starter: Fusible Disconnect, 3 Poles, NEMA Size 5, 120V AC, NEMA-Rated 12 (MPN ECN1658AAK-R63/GL30). Key specifications — Includes Pilot Light: No; Maximum Voltage Rating: 600V AC; Brand: EATON; Phase: Three; Coil Voltage: 110/120V AC; Control Transformer: No; For Fuse Class: Class R; Series: Freedom.
Brand: Eaton

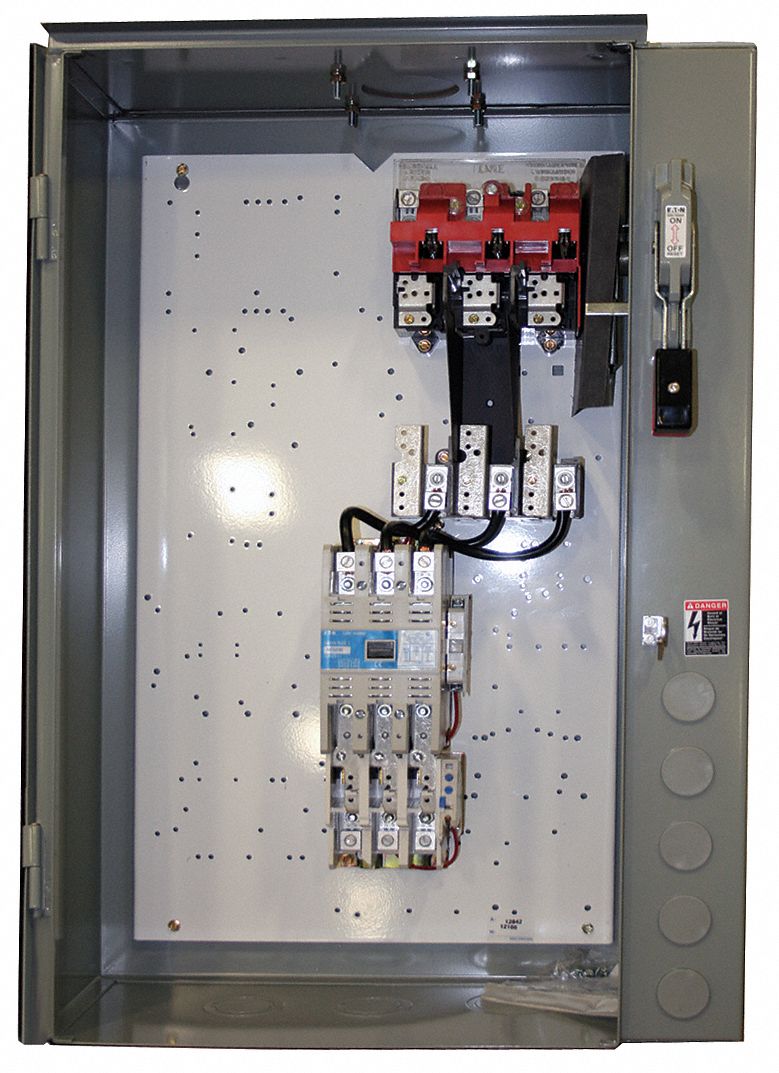

The EATON NEMA Combination Starter: Fusible Disconnect (SKU 40Z734, MPN ECN1658AAK-R63/GL30) is a three-phase fusible starter with electronic overloads from the Freedom series. It is a 3-pole, NEMA Size 5 unit rated for 600V AC maximum, with a 110/120V AC coil voltage and Class R fuse compatibility. This model features screw terminals, includes auxiliary contacts, and does not include a pilot light or control transformer.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
Type	NEMA Size 5, NEMA-Rated 12
Brand	EATON
Phase	Three
Poles	3
Series	Freedom
Poles/Phase	3 Pole / Three Phase
Coil Voltage	110/120V AC
Operator Type	No Operator
For Fuse Class	Class R
Control Transformer	No
Includes Pilot Light	No
Maximum Voltage Rating	600V AC
Thermal Units Required	None (Not Applicable to Electronic Overloads)
Manufacturer Part Number	ECN1658AAK-R63/GL30
Terminal Connection Type	Screw Terminals
Includes Auxiliary Contacts	Yes
