Eaton 3G-OTH-36775 — Technical Specifications

Name: Eaton 3G-OTH-36775 EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever, 2NO/2NC, Metallic (MPN E34VHBL1-Y2). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Maintained; Cam: 3; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

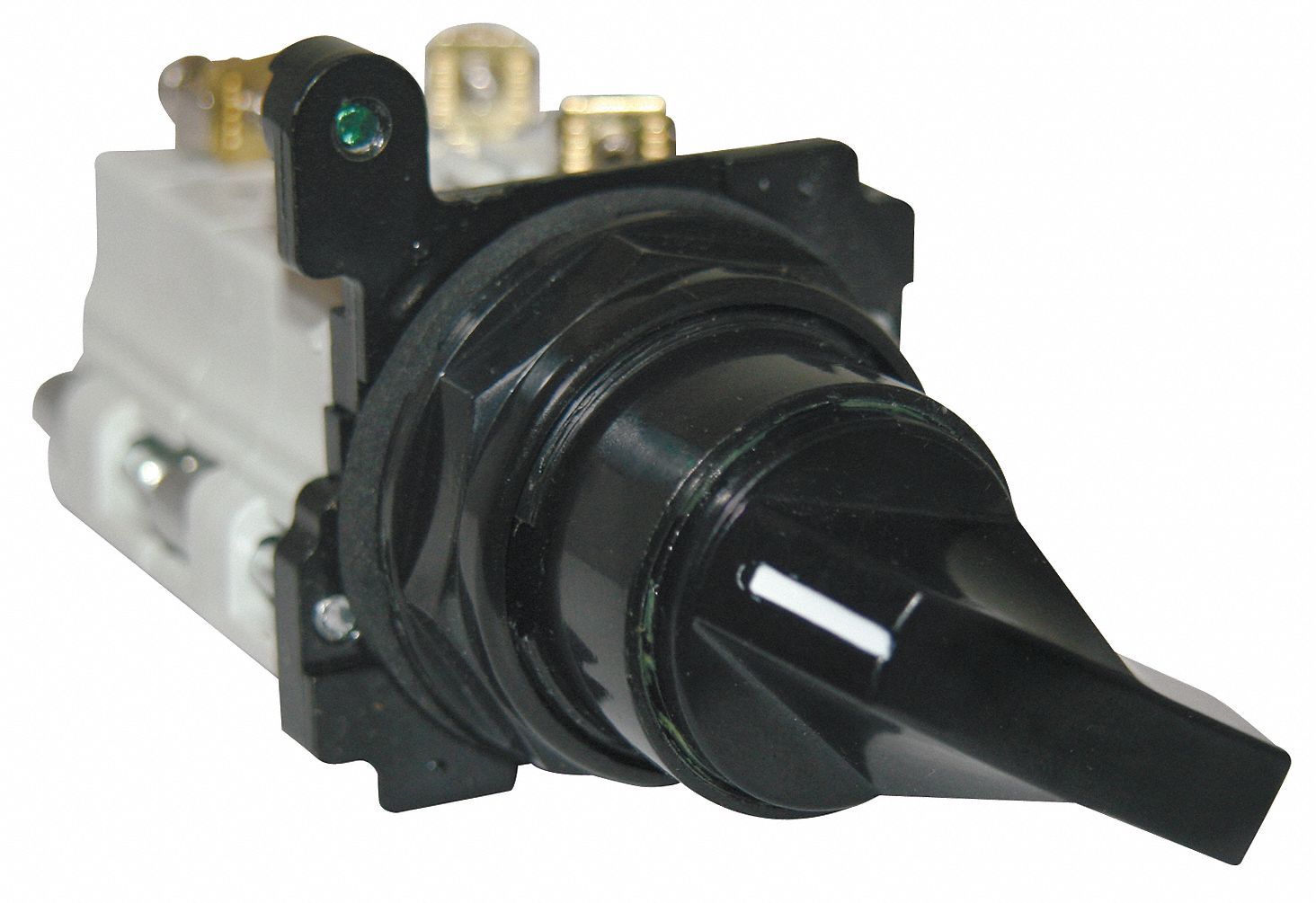

The EATON E34VHBL1-Y2 is a 30 mm panel-mounting selector switch from the E34 series, featuring a long-handled knob with a polymer operator head and a metallic bezel. It offers three maintained positions (On/On/On) with a 3-cam configuration, rated at 10 A @ 600 V AC and 5 A @ 250 V DC. This non-illuminated switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	3
Type	Extended Lever, 2NO/2NC, Metallic
Brand	EATON
Action	Maintained/Maintained/Maintained
Series	E34
Positions	3
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	E34VHBL1-Y2
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
