Eaton 3G-OTH-36041 — Technical Specifications

Name: Eaton 3G-OTH-36041 EATON Selector Switch: 30 mm Panel Mounting Size, 4 Positions, Extended Lever, 2NO/2NC, Metallic (MPN 10250T46LB). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Maintained/Maintained; Cam: 3; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

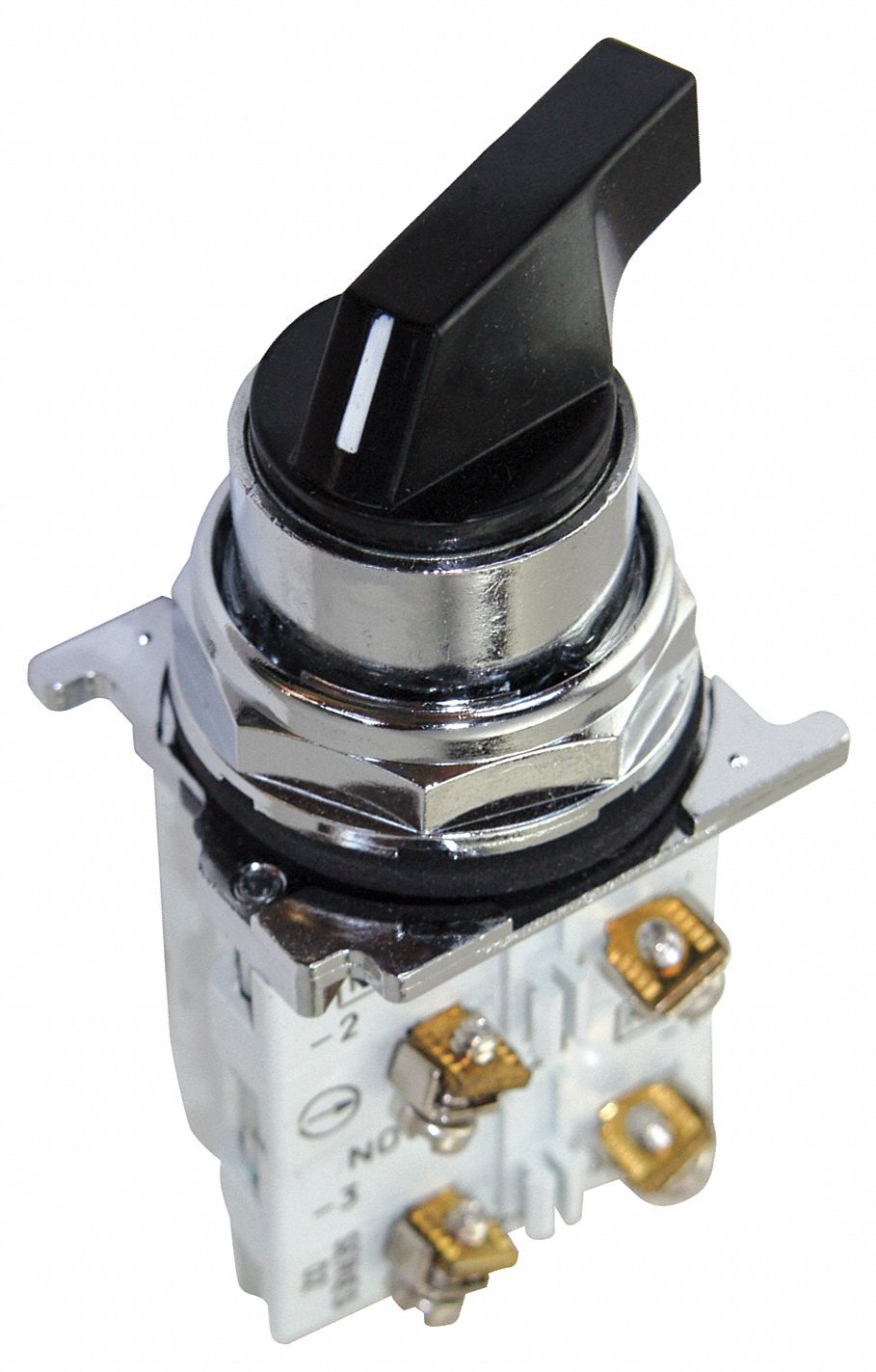

The EATON 10250T46LB is a 30 mm panel-mount selector switch from the Series 10250T, featuring a polymer long-handled knob and a metallic bezel. This 4-position maintained-action switch (Cam 3) provides On/On/On/On functionality with 2NO/2NC contacts, rated at 10 A @ 600 V AC and 5 A @ 250 V DC. It is non-illuminated and not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	3
Type	Extended Lever, 2NO/2NC, Metallic
Brand	EATON
Action	Maintained/Maintained/Maintained/Maintained
Series	10250T
Positions	4
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	10250T46LB
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	On
Hazardous Location Specification	Not Rated
