Eaton 3G-OTH-32559 — Technical Specifications

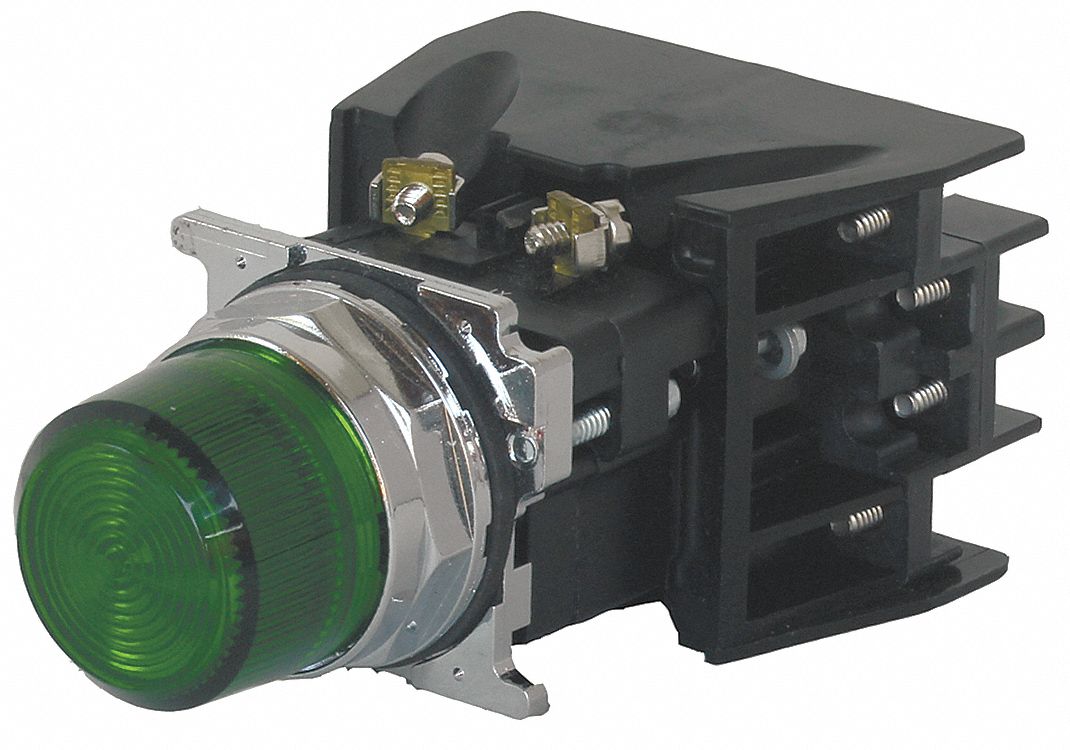

The EATON Illuminated Push Button is a 30 mm metallic extended-profile push button operator from the 10250T series. It features momentary action with 1NO/1NC contacts, rated at 10 A @ 600 V AC and 2.5 A @ 250 V DC. The operator is illuminated and constructed from metal.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | EATON |
| Action | Momentary |
| Series | 10250T |
| Product Type | Push Button Operators |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 2.5 A @ 250 V |
| Operator Material | Metal |
| Operator Illumination | Illuminated |
| Manufacturer Part Number | 10250T828GD24 |
| Push Button Material Type | Metallic |
