Eaton 3G-OTH-52096 — Technical Specifications

Name: Eaton 3G-OTH-52096 Cordset: M12 Female Straight X Bare Wire, 4 Pins, Yellow, PVC, 2 m Cable Lg, 4 A Max Current (A) (MPN CSDS4A3CY2202). Key specifications — Cable Jacket Color: Yellow; End 1 Gender: Female; End 1 Mounting Orientation: Straight; End 2 Connection Type: Bare Wire; IP Rating: IP67; Brand: EATON; NEMA Rating: 6P; Wire Size: 16 AWG.
Brand: Eaton

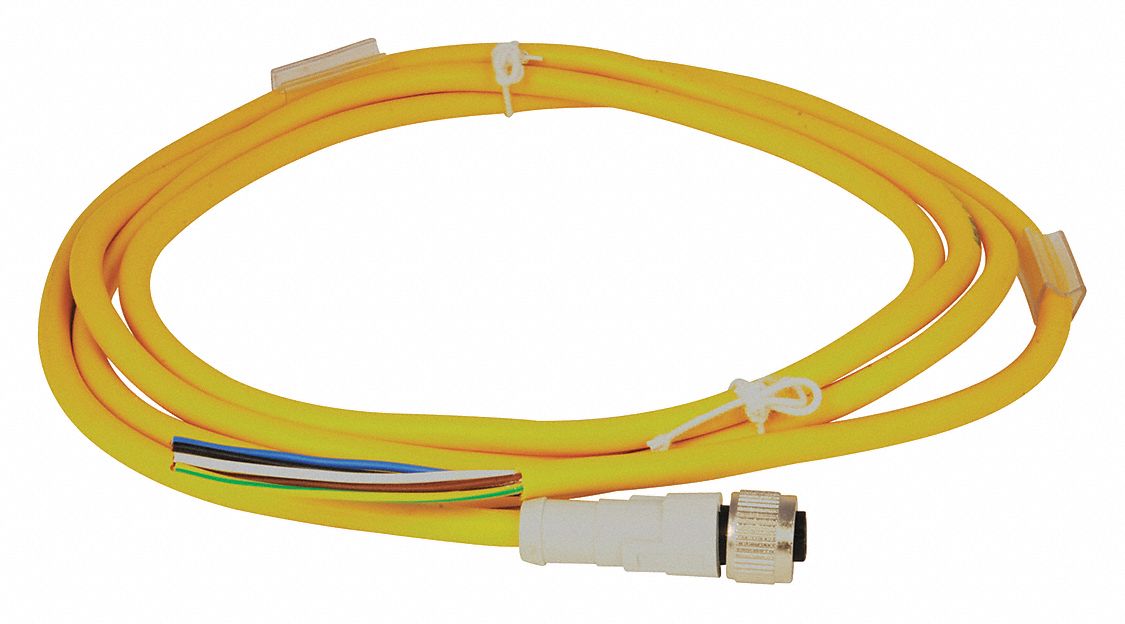

The EATON Cordset is a single-ended cordset with PVC jacket for flexing applications, featuring an M12 female straight connector on one end and bare wire on the other. It has 4 pins, a 2 m cable length, 16 AWG wire size, and a maximum current of 4 A. The cordset is rated IP67 and NEMA 6P, with a yellow PVC jacket.

View Product & Quote

Technical Specifications

Parameter	Value
Pins	4
Type	Yellow, PVC
Brand	EATON
Cable Lg	2 m
IP Rating	IP67
Wire Size	16 AWG
NEMA Rating	6P
End 1 Gender	Female
Max Current (A)	4 A
Cable Jacket Color	Yellow
Cable Jacket Material	PVC
End 1 Connection Type	M12
End 2 Connection Type	Bare Wire
Manufacturer Part Number	CSDS4A3CY2202
End 1 Mounting Orientation	Straight
