Eaton 3G-OTH-32917 — Technical Specifications

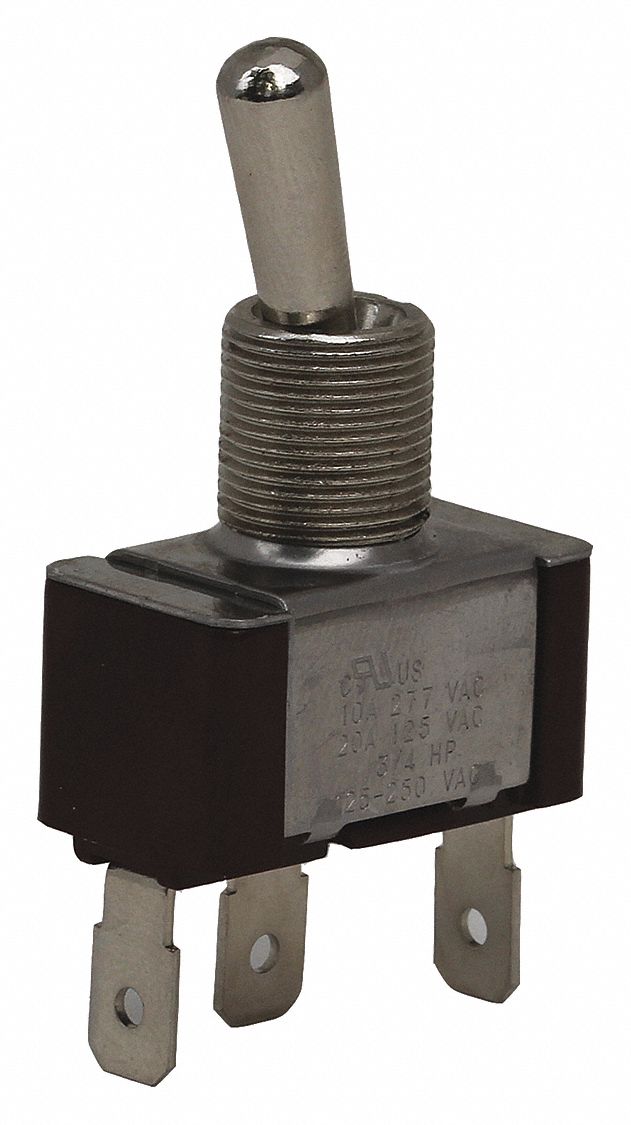

The EATON X Series XTD1F3A2 is a panel-mount toggle switch with a 3-position On/None/Off switch function configuration. It features a single-pole, single-throw (SPST) design with two connections and a solder lug termination. The switch is rated for 20 A at 125 V AC and 3/4 hp.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | SPST, Solder Lug Connection, X Series |
| Brand | EATON |
| Series | X |
| Horsepower | 3/4 hp |
| Connections | 2 |
| AC Contact Rating | 20 A @ 125 V |
| Manufacturer Part Number | XTD1F3A2 |
| Switch Function Configuration | On/None/Off |
