Eaton 3G-OTH-34826 — Technical Specifications

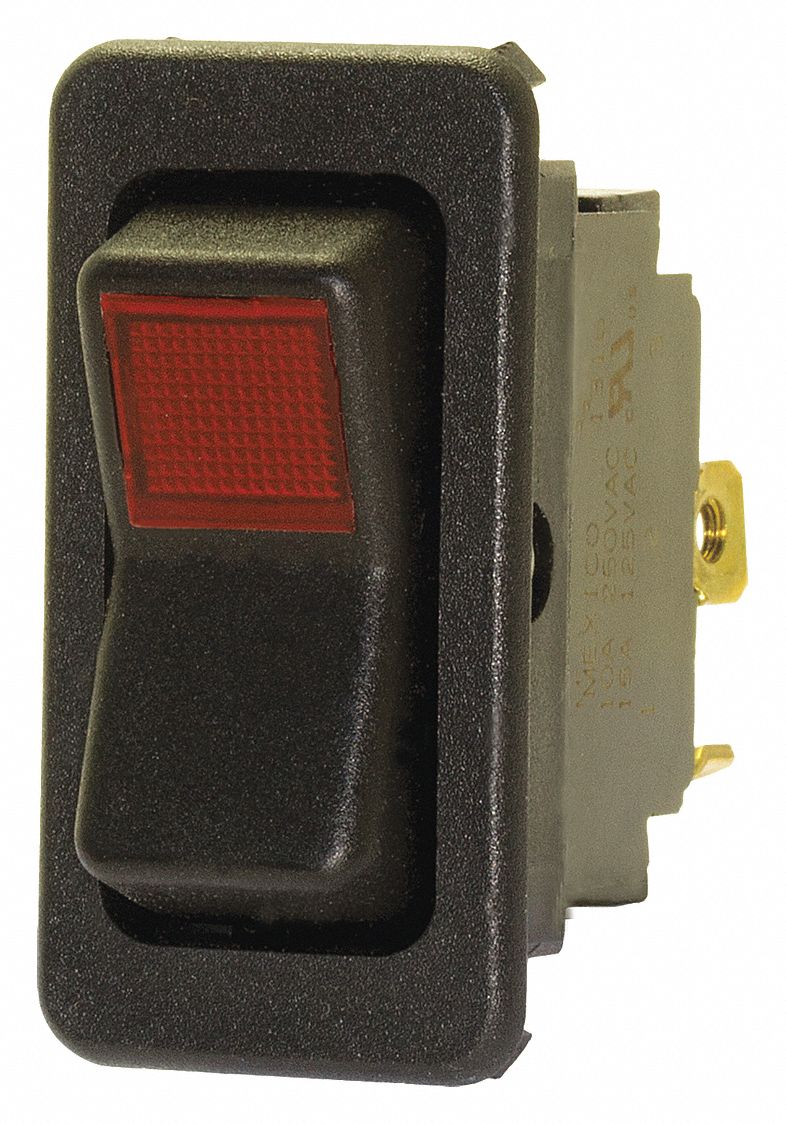

Name: Eaton 3G-OTH-34826 EATON Lighted Rocker Switch: 2 Positions, SPST, Off/Momentary On, Red (MPN 8005K35N113V22). Key specifications — AC Contact Rating: 15 A @ 125 V; DC Contact Rating: 15 A @ 28 V; Horsepower: 3/4 hp @ 250 V; Operator Illumination: Illuminated; Switch Color: Black; Terminal Connection Type: 1/4 in Spade; Includes Lamp Module: Lamp Module Included; Includes Lens: Lens Included.
Brand: Eaton

The EATON Lighted Rocker Switch is a general-purpose rocker switch from the Series 8005, featuring a 2-position SPST configuration with Off/Momentary On operation and red illumination. It is rated for AC contact at 15 A @ 125 V and DC contact at 15 A @ 28 V, with a horsepower rating of 3/4 hp @ 250 V. The switch has a black body, includes a lamp module and lens, and connects via 1/4 in spade terminals.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	EATON
Series	8005
Horsepower	3/4 hp @ 250 V
Switch Color	Black
Includes Lens	Lens Included
Displayed Brand	EATON
AC Contact Rating	15 A @ 125 V
DC Contact Rating	15 A @ 28 V
Includes Lamp Module	Lamp Module Included
Operator Illumination	Illuminated
Manufacturer Part Number	8005K35N113V22
Terminal Connection Type	1/4 in Spade
