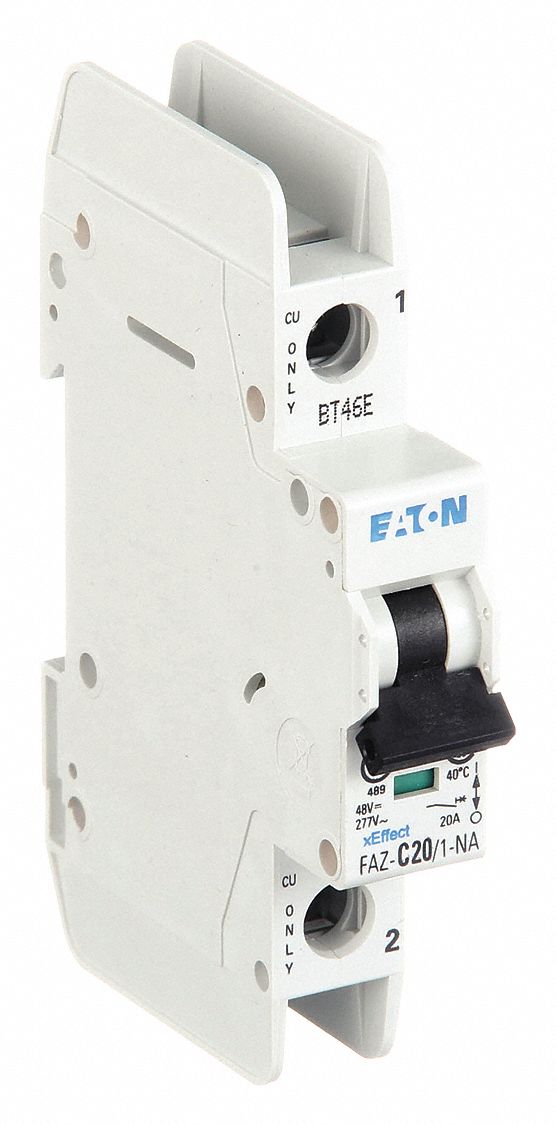

Eaton 3G-OTH-22776 — Technical Specifications

Name: Eaton 3G-OTH-22776 EATON IEC Miniature Circuit Breaker: 20 A Amps, 48V DC, 14kA at 277/480V AC, Screw Clamp, FAZ-NA (MPN FAZ-C20/1-NA-SP). Key specifications — Brand: EATON; DC Voltage Rating: 48V DC; Max. AIR Rating: 14kA at 277/480V AC; Terminal Connection: Screw Clamp; AC Voltage Rating: 277/480V AC.
Brand: Eaton

The EATON FAZ-C20/1-NA-SP is a 20 A, C-Curve, 1-pole UL489 DIN rail-mount miniature circuit breaker. It is rated for 277/480V AC with a maximum AIR rating of 14kA at 277/480V AC, and also rated for 48V DC. The terminal connection is a screw clamp.

View Product & Quote

Technical Specifications

Parameter	Value
DC	48V
Type	14kA at 277/480V AC, Screw Clamp, FAZ-NA
Brand	EATON
Max. AIR Rating	14kA at 277/480V AC
AC Voltage Rating	277/480V AC
DC Voltage Rating	48V DC
Terminal Connection	Screw Clamp
Manufacturer Part Number	FAZ-C20/1-NA-SP
