Eaton 3G-OTH-19704 — Technical Specifications

Name: Eaton 3G-OTH-19704 EATON IEC Supplementary Protector: 25 A Amps, 96V DC, 15kA at 277/480V AC, Lug, FAZ, 277/480V AC (MPN FAZ-C25/3). Key specifications — Terminal Connection: Lug; Series: FAZ; AC Voltage Rating: 277/480V AC; DC Voltage Rating: 96V DC; Max. AIR Rating: 15kA at 277/480V AC; Brand: EATON.
Brand: Eaton

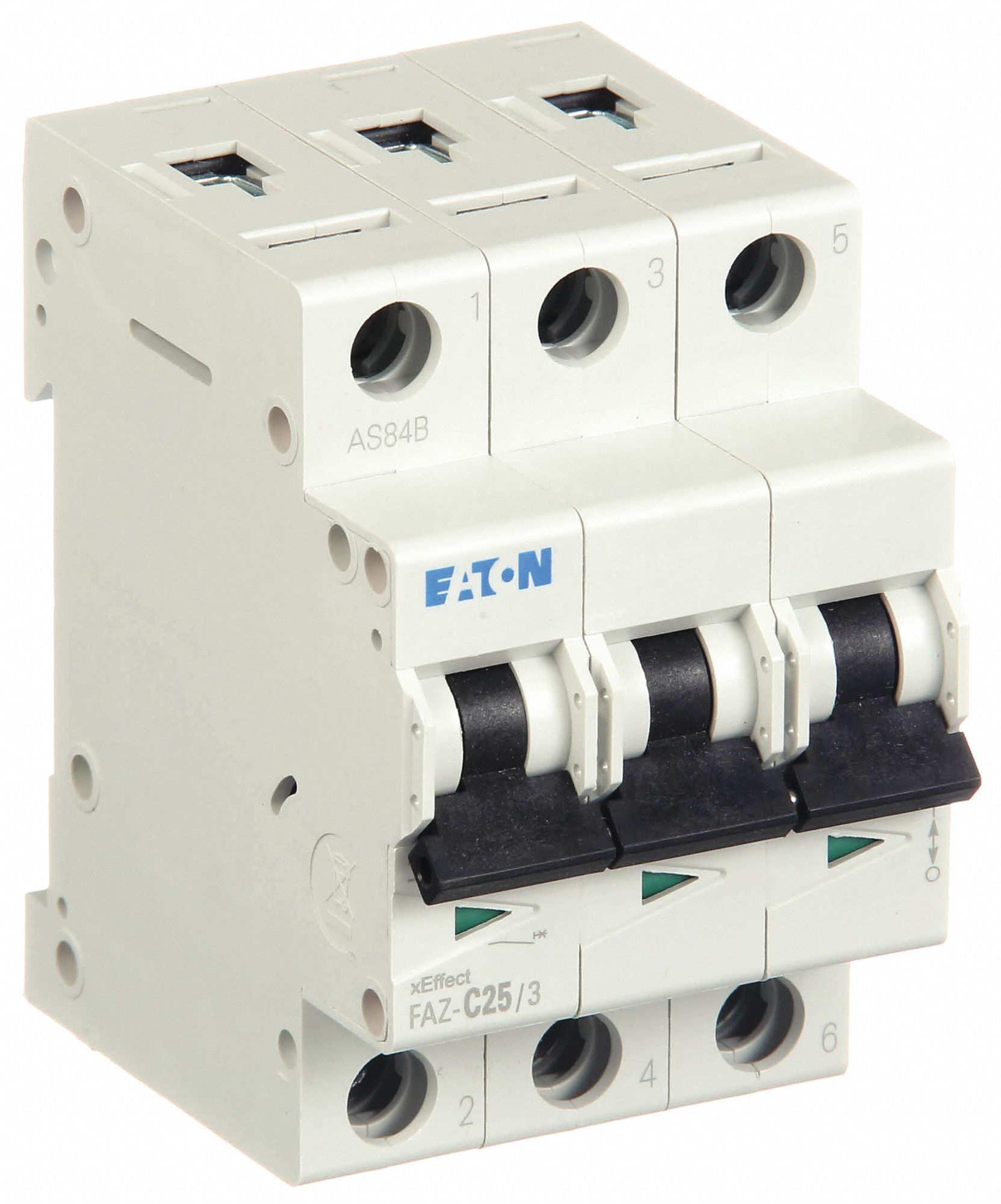

The EATON FAZ-C25/3 is a 25 A, C-Curve, 3-pole UL1077 DIN rail-mount supplementary protector from the FAZ series. It is rated for 277/480V AC with a maximum AIR rating of 15kA at that voltage, and also carries a 96V DC rating. The unit features lug terminal connections.

View Product & Quote

Technical Specifications

Parameter	Value
AC	277/480V
DC	96V
Type	15kA at 277/480V AC, Lug, FAZ
Brand	EATON
Series	FAZ
Max. AIR Rating	15kA at 277/480V AC
AC Voltage Rating	277/480V AC
DC Voltage Rating	96V DC
Terminal Connection	Lug
Manufacturer Part Number	FAZ-C25/3
