Eaton 3G-OTH-34534 — Technical Specifications

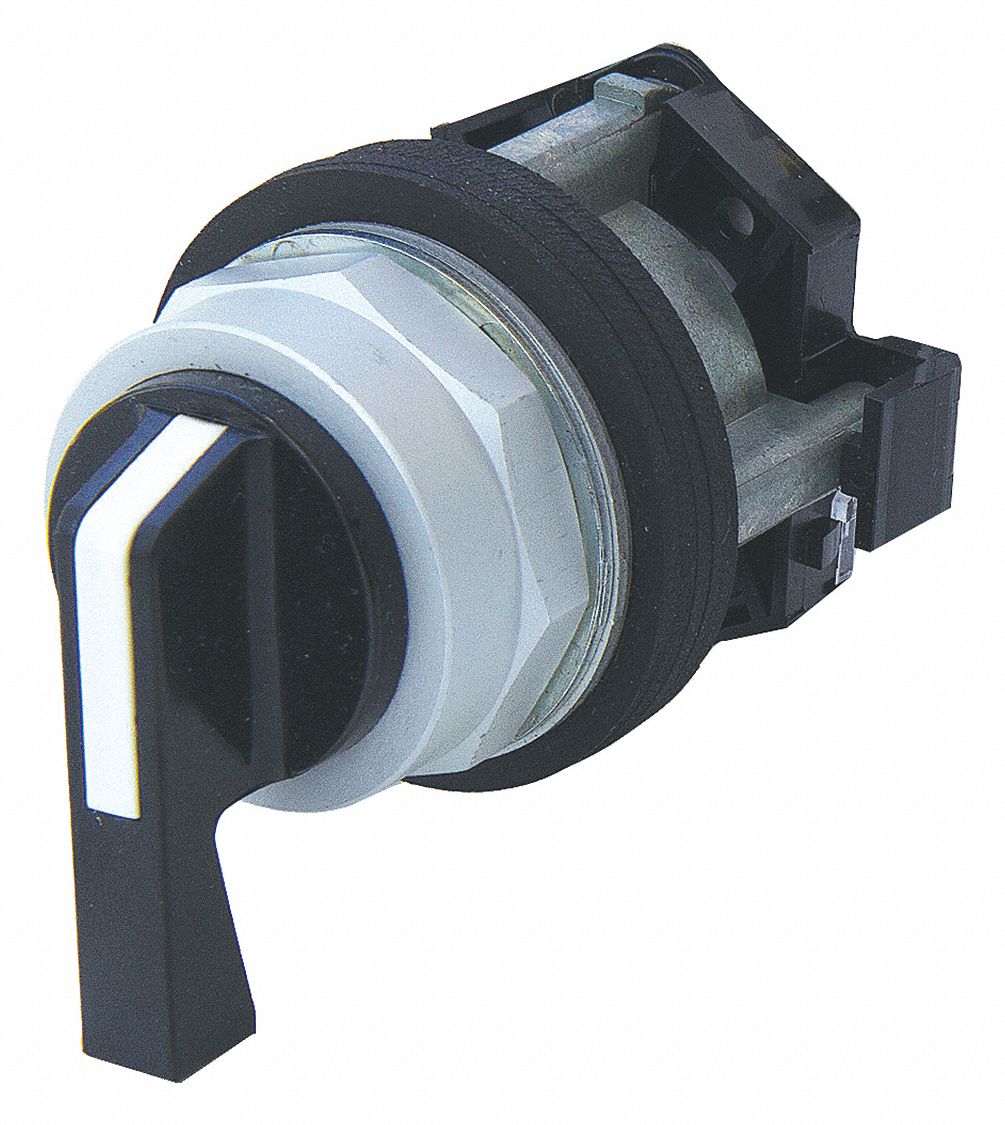

The EATON HT8JFH8EF1Q1 is a 30 mm panel-mount selector switch from the HT800 series, featuring a long-handled knob with a polymer operator head and a metallic bezel. It offers four maintained positions (On/On/On/On) with an 8E cam, and is rated for AC contacts at 10 A @ 600 V and DC contacts at 5 A @ 250 V. This non-illuminated switch is not rated for hazardous locations.
Technical Specifications
| Parameter | Value |
|---|---|
| Cam | 8E |
| Type | Extended Lever, 1NC/1NO, Metallic |
| Brand | EATON |
| Action | Maintained/Maintained/Maintained/Maintained |
| Series | HT800 |
| Positions | 4 |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 5 A @ 250 V |
| Operator Head Type | Long-Handled Knob |
| Operator Illumination | Non-Illuminated |
| Operator Head Material | Polymer |
| Manufacturer Part Number | HT8JFH8EF1Q1 |
| Switch Bezel Material Type | Metallic |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | On |
| Hazardous Location Specification | Not Rated |
