Eaton 3G-OTH-35877 — Technical Specifications

Name: Eaton 3G-OTH-35877 EATON Selector Switch: 30 mm Panel Mounting Size, 4 Positions, Short Lever, 2NC/2NO, Metallic (MPN HT8JCH8EF1Q1). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Maintained/Maintained; Cam: 8E; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

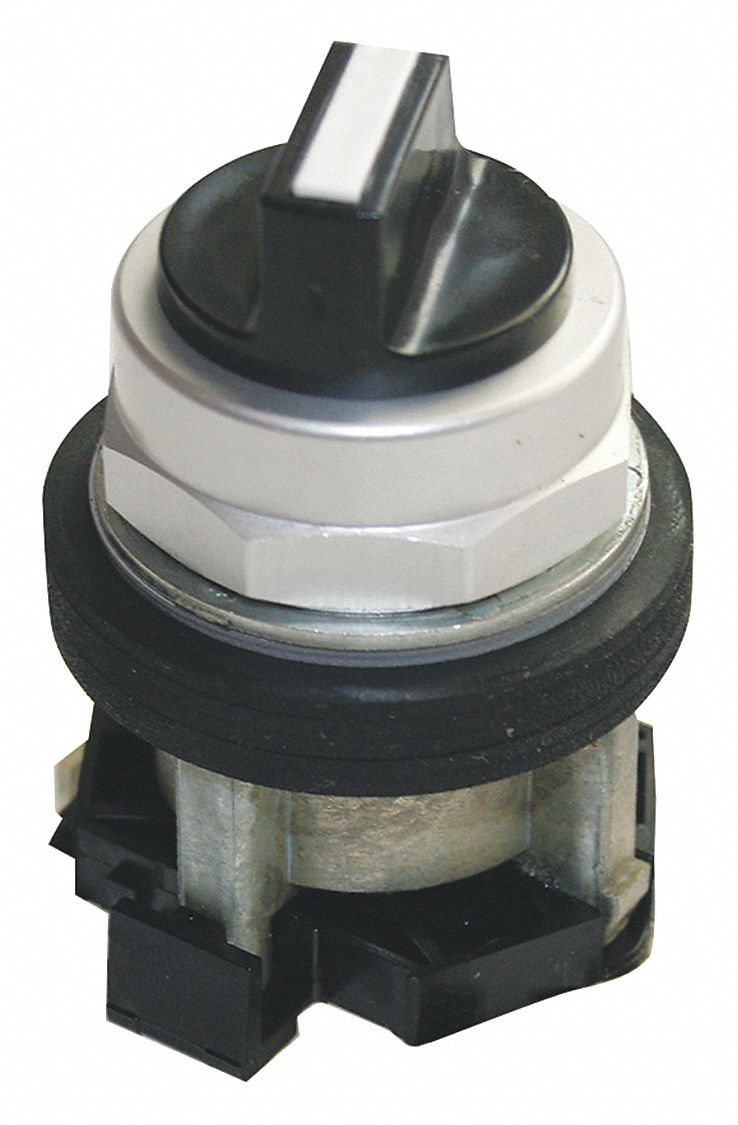

The EATON HT8JCH8EF1Q1 is a 30 mm panel-mount selector switch from the HT800 series, featuring a non-illuminated short-handled knob with a polymer operator head and a metallic bezel. It offers four maintained positions (On/On/On/On) with an 8E cam, and is rated for AC contacts at 10 A @ 600 V and DC contacts at 5 A @ 250 V. This switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	8E
Type	Short Lever, 2NC/2NO, Metallic
Brand	EATON
Action	Maintained/Maintained/Maintained/Maintained
Series	HT800
Positions	4
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	HT8JCH8EF1Q1
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	On
Hazardous Location Specification	Not Rated
