Eaton 3G-OTH-35352 — Technical Specifications

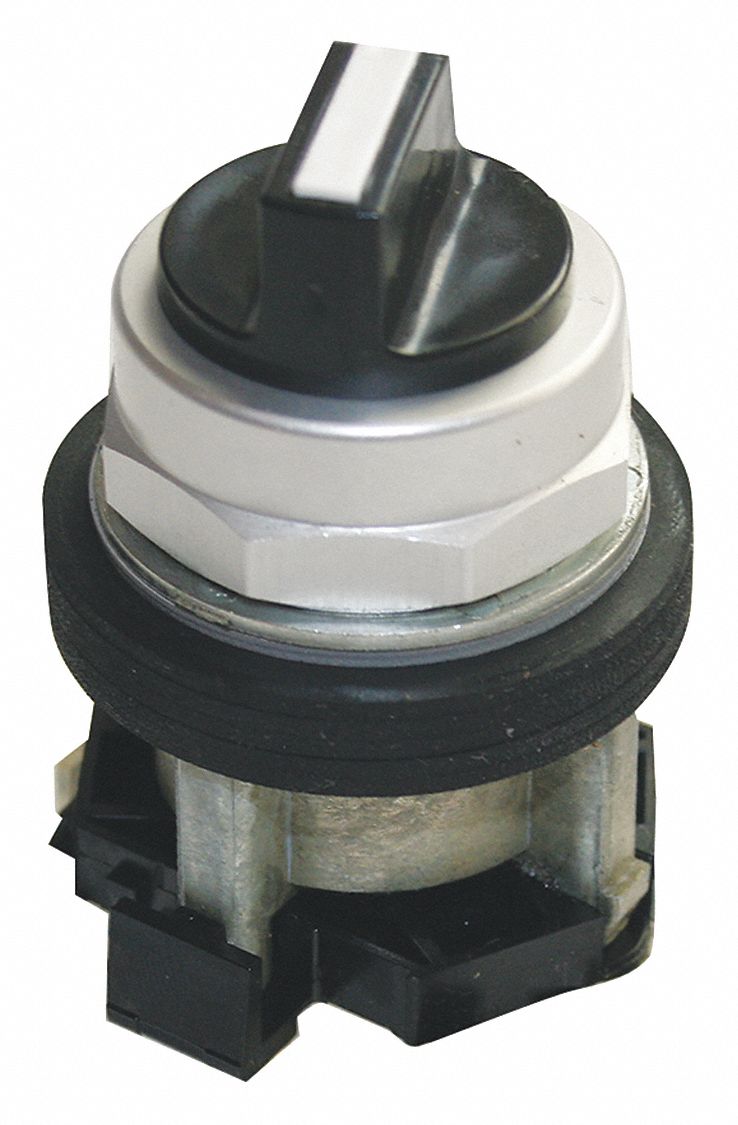

Name: Eaton 3G-OTH-35352 EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever, 2NO, Metallic (MPN HT8JEH1DAA5). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Maintained; Cam: 1D; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

The EATON HT8JEH1DAA5 is a 30 mm panel-mount selector switch from the HT800 series, featuring a long-handled knob with a polymer operator head and a metallic bezel. It offers three maintained positions (On-Off-On) with a 1D cam, rated at 10 A @ 600 V AC and 5 A @ 250 V DC. This non-illuminated switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	1D
Type	Extended Lever, 2NO, Metallic
Brand	EATON
Action	Maintained/Maintained/Maintained
Series	HT800
Positions	3
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	HT8JEH1DAA5
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
