Eaton 3G-OTH-35640 — Technical Specifications

Name: Eaton 3G-OTH-35640 EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO, Metallic (MPN HT8JXH1DAA5). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Momentary/Maintained/Momentary; Cam: 1D; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

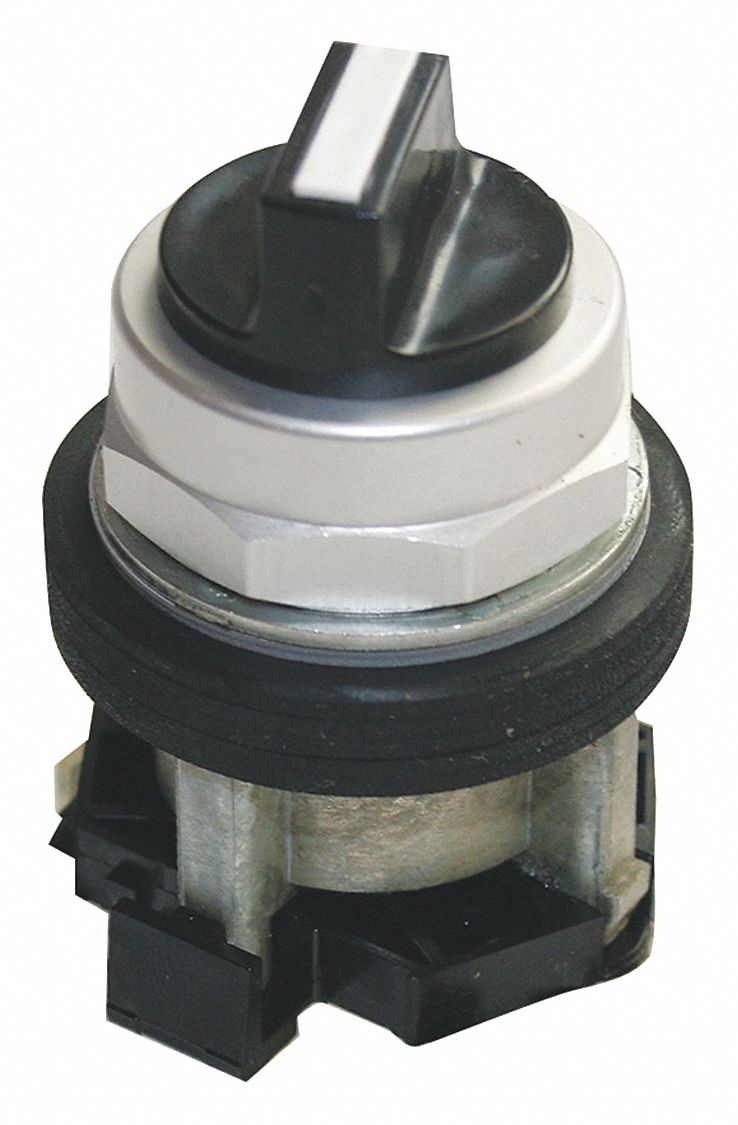

The EATON HT800 Series Selector Switch (SKU 12Y217, MPN HT8JXH1DAA5) is a 30 mm panel-mounting, non-illuminated selector switch with a short-handled knob and polymer operator head. It features a momentary/maintained/momentary action with a 1D cam, offering three positions (On-Off-On) and a metallic bezel. Its AC contact rating is 10 A @ 600 V, and its DC contact rating is 5 A @ 250 V; it is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	1D
Type	Short Lever, 2NO, Metallic
Brand	EATON
Action	Momentary/Maintained/Momentary
Series	HT800
Positions	3
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	HT8JXH1DAA5
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
