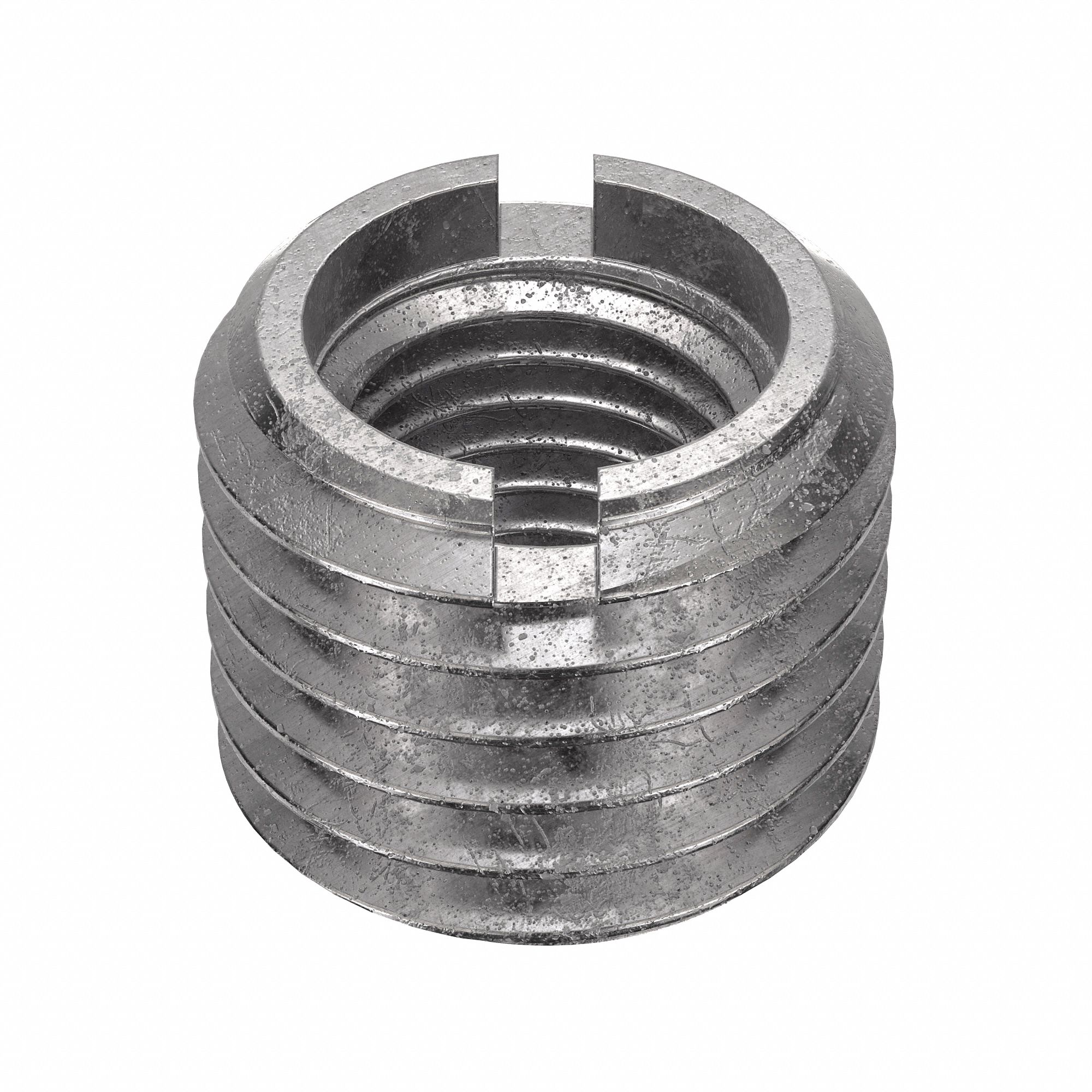

E-z Lok 3G-OTH-534170 — Technical Specifications
The E-Z LOK Self Locking Thread Insert is a heavy-wall metric insert (M16-2.00 internal thread size, M24-3.00 external thread size) supplied in a 5-pack (MPN 453-16-PK5). It requires a 21 mm drill bit and an M24-3.00 tap, with external thread fit 6G and internal thread fit 6H.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M16-2.00 Int Thrd Sz, M24-3.00 Ext Thrd Sz, 5 PK |
| Wall Type | Heavy Wall |
| Thread Type | Metric |
| Drill Bit Size | 21 mm |
| Compatible Tap Size | M24-3.00 |
| External Thread Fit | 6G |
| Internal Thread Fit | 6H |
| System Of Measurement | Metric |
| Manufacturer Part Number | 453-16-PK5 |
