E-z Lok 3G-OTH-534194 — Technical Specifications

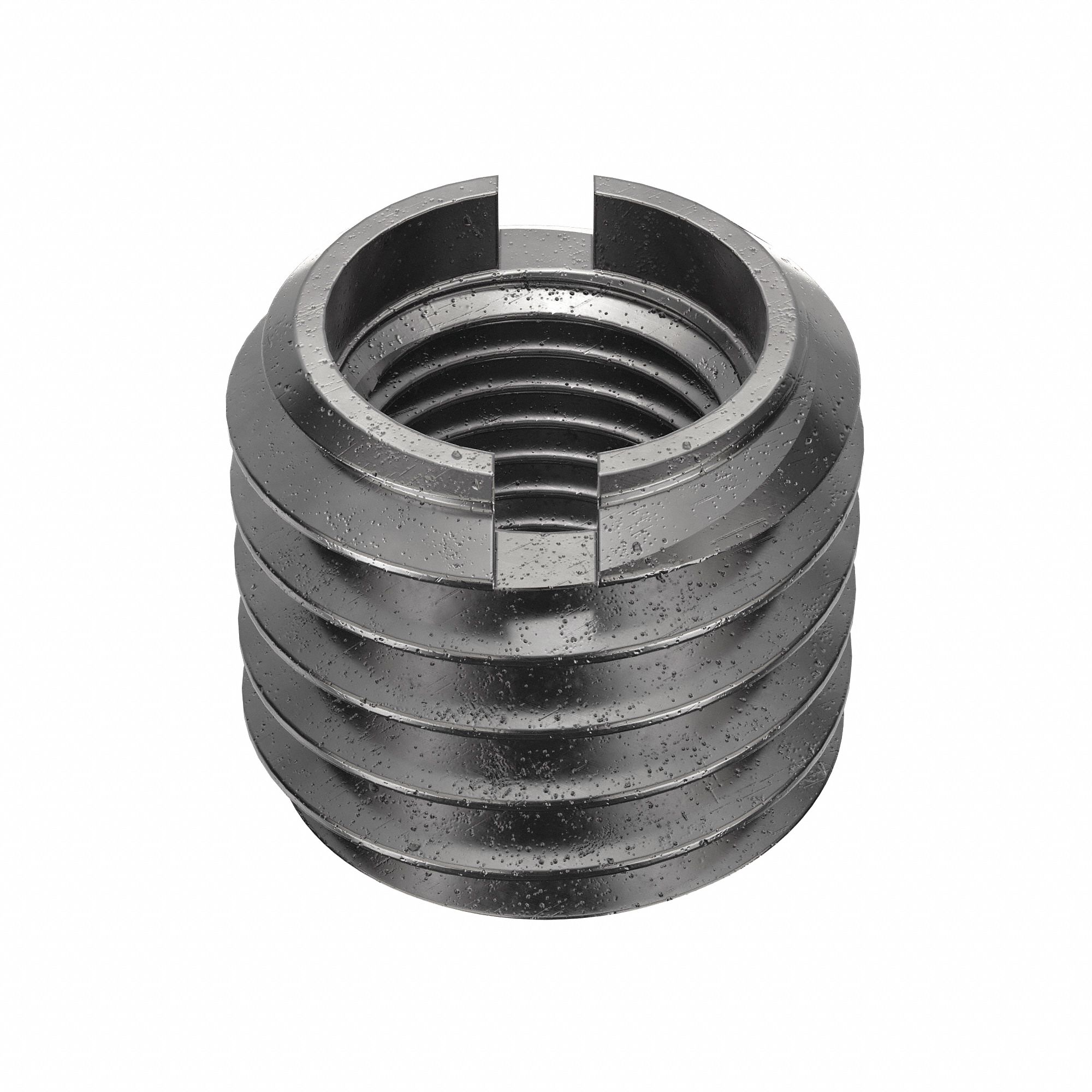

The E-Z LOK Self Locking Thread Insert is a heavy-wall, inch-system insert with a 3/8"-24 UNF internal thread and a 9/16"-12 UNC external thread, supplied in a 10-pack (MPN 329-624-PK10). It features a 2A external thread fit and a 2B internal thread fit, and is compatible with a 9/16"-12 tap size.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 10 PK |
| Wall Type | Heavy Wall |
| Ext Thrd Sz | 9/16"-12 |
| Int Thrd Sz | 3/8"-24 |
| Thread Type | UNF Internal/UNC External |
| Compatible Tap Size | 9/16"-12 |
| External Thread Fit | 2A |
| Internal Thread Fit | 2B |
| System Of Measurement | Inch |
| Manufacturer Part Number | 329-624-PK10 |
