Dwyer 3G-OTH-179174 — Technical Specifications

Name: Dwyer 3G-OTH-179174 DWYER Humidity/Temperature Transmitter: 0 to 10VDC, 10K Ohm Type 3 Thermistor, Screw Terminals, WHT (MPN WHT-32A). Key specifications — Brand: DWYER; Humidity Accuracy: ±2% @ 20 to 80% RH; ±3% @ 10 to 20%, 80 to 90% RH.; Sensing Element Type: 10K Ohm Type 3 Thermistor; Temperature Accuracy: ±0.36°F @ 77°F; Output: 0 to 10VDC; Power Source: 10 to 35V DC; Temperature Range: -4 °F to 140 °F.
Brand: Dwyer

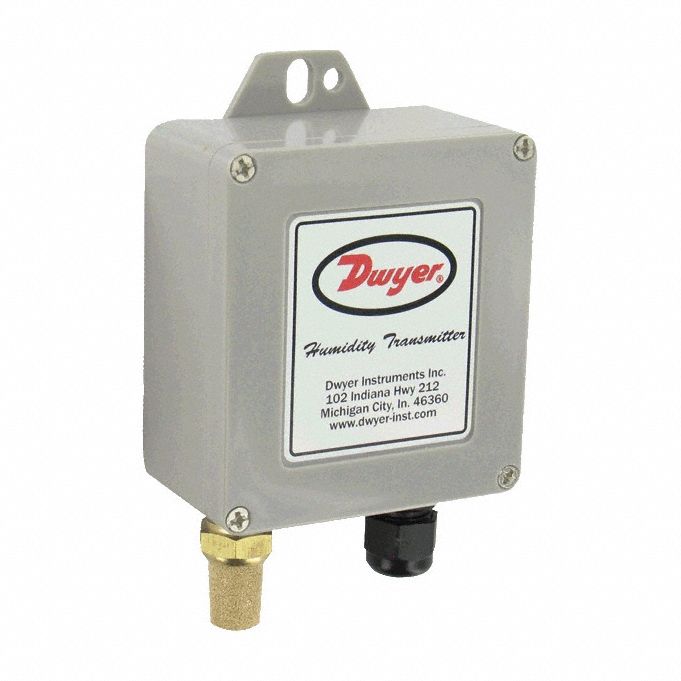

The Dwyer WHT-32A is an outdoor surface-mount temperature and humidity transmitter with a 0 to 10VDC output. It features a 10K Ohm Type 3 thermistor sensing element, humidity accuracy of ±2% @ 20 to 80% RH, and temperature accuracy of ±0.36°F @ 77°F. The device operates on a 10 to 35V DC power source within a temperature range of -4 °F to 140 °F.

View Product & Quote

Technical Specifications

Parameter	Value
Type	10K Ohm Type 3 Thermistor, Screw Terminals, WHT
Brand	DWYER
Output	0 to 10VDC
Power Source	10 to 35V DC
Humidity Accuracy	±2% @ 20 to 80% RH
Temperature Range	-4 °F to 140 °F
Sensing Element Type	10K Ohm Type 3 Thermistor
Temperature Accuracy	±0.36°F @ 77°F
Manufacturer Part Number	WHT-32A
