Dwyer 3G-OTH-185207 — Technical Specifications

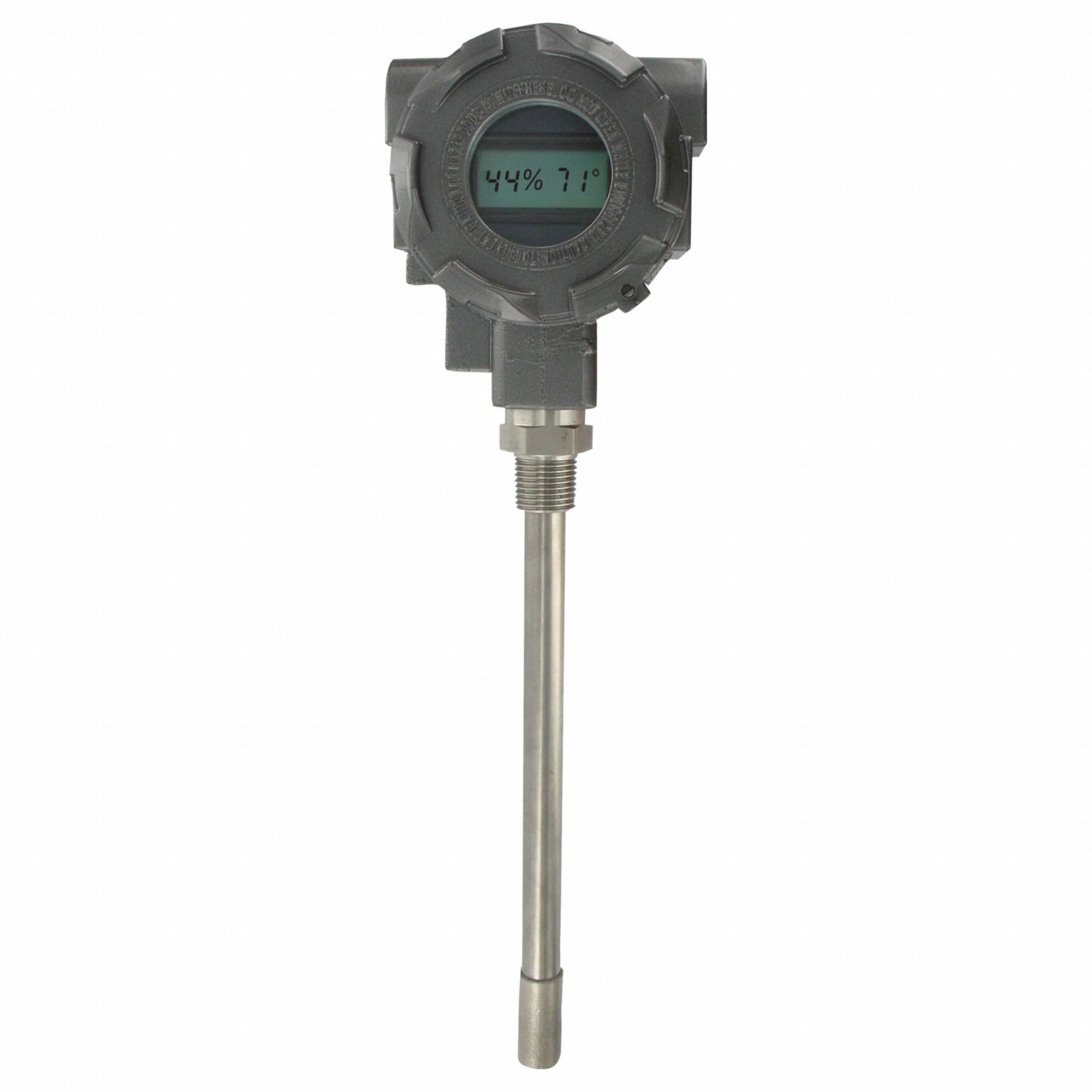

The DWYER HHT-IT-LCD is an intrinsically safe hazardous location transmitter with a display, measuring temperature and humidity. It features a solid state band gap sensing element, a temperature range of -40 °F to 140 °F, and an accuracy of ±0.9°F @ 77°F. The device requires 9.5 to 28V DC power and has a 1/2 in NPT connection with a 4 to 20 mA output.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | -40 to 140 Degrees F, 4 to 20 mA, Female |
| Brand | DWYER |
| Standards | Intrinsically Safe |
| Power Required | 9.5 to 28V DC |
| Temperature Range | -40 °F to 140 °F |
| Sensing Element Type | Solid State Band Gap |
| Temperature Accuracy | ±0.9°F @ 77°F |
| Manufacturer Part Number | HHT-IT-LCD |
