Dwyer 3G-OTH-361555 — Technical Specifications

Name: Dwyer 3G-OTH-361555 DWYER Temperature Controller: 32A, 1/32 DIN Size, RTD/Thermocouple, 100 to 240V AC, 14°F to 131°F (MPN 32A133). Key specifications — Brand: DWYER; Alarms: Relay, 3A, SPST; Control Mode: Self Adjustable; Current: 1.5 A; Display Type: Digital; Input Voltage: 100 to 240V AC; Output: (2) Relay; Product Type: Temperature Controller.
Brand: Dwyer

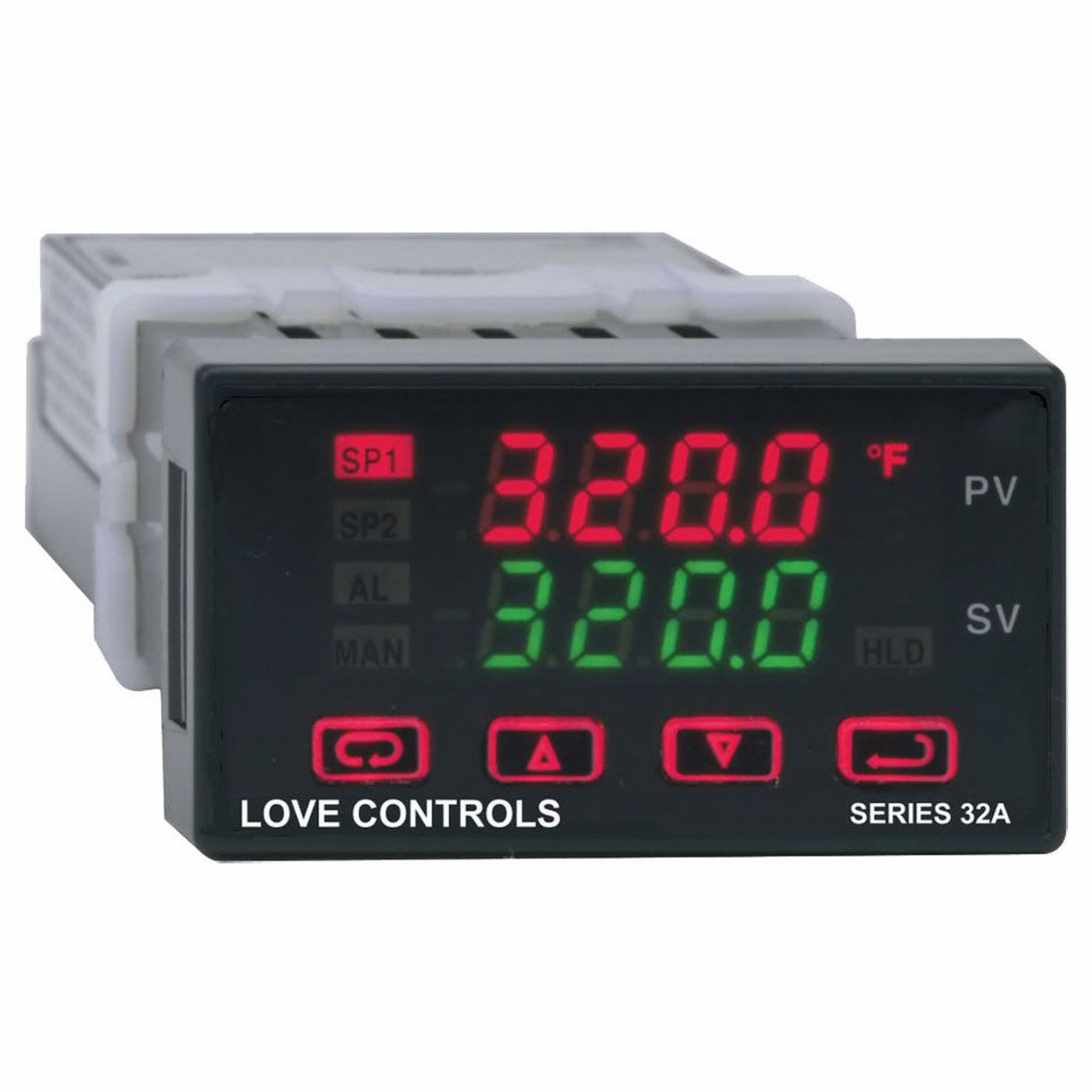

The Dwyer Series 32A Temperature Controller is a 1/32 DIN digital controller with a self-adjustable control mode, accepting thermocouple or RTD sensor inputs. It operates on 100 to 240V AC input voltage, features a digital display, and provides (2) relay outputs along with a relay alarm rated at 3A, SPST. The unit draws 1.5 A current and is designed for precise temperature management in industrial processes.

View Product & Quote

Technical Specifications

Parameter	Value
AC	100 to 240V
Type	RTD/Thermocouple, 14°F to 131°F
Brand	DWYER
Alarms	Relay, 3A, SPST
Output	(2) Relay
Series	32A
Current	1.5 A
DIN Size	1/32
Sensor Type	Thermocouple
Control Mode	Self Adjustable
Display Type	Digital
Product Type	Temperature Controller
Input Voltage	100 to 240V AC
Manufacturer Part Number	32A133
