Dwyer 3G-OTH-183867 — Technical Specifications

Name: Dwyer 3G-OTH-183867 DWYER Duct Temperature Probe: -40°F to 302°F /-40°C to 150°C, 10,000 ohm, Bare Wire (MPN TE-DFN-B0444-00). Key specifications — Cable Length: 4 in; Brand: DWYER; Accuracy: +/-0.22°C at 25°C (+/-0.4°F at 77°F).
Brand: Dwyer

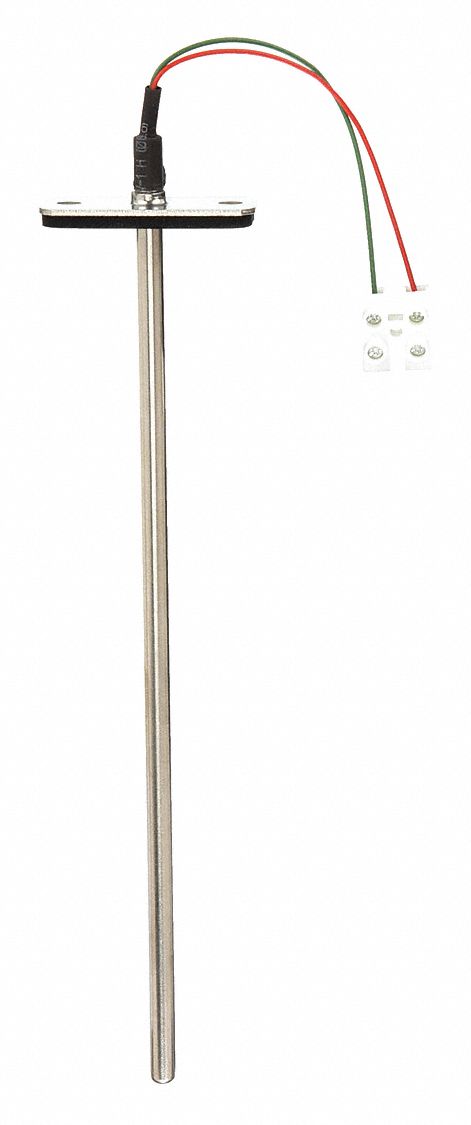

The DWYER Duct Temperature Probe is a flange-mount duct thermistor probe designed for temperature measurement in HVAC applications. It features a 10,000 ohm thermistor with an accuracy of +/-0.22°C at 25°C (+/-0.4°F at 77°F) and a temperature range of -40°F to 302°F / -40°C to 150°C. The probe includes a 4-inch cable with bare wire termination.

View Product & Quote

Technical Specifications

Parameter	Value
Type	10,000 ohm, Bare Wire
Brand	DWYER
Accuracy	+/-0.22°C at 25°C (+/-0.4°F at 77°F)
Cable Length	4 in
Manufacturer Part Number	TE-DFN-B0444-00
