Dwyer 3G-OTH-180770 — Technical Specifications

Name: Dwyer 3G-OTH-180770 DWYER Humidity/Temp Transducer: 0 to 10V DC, Pt1000 RTD, Screw Terminals, 1/2 in NPS, 9 in Probe Lg (MPN RHP-2D2E). Key specifications — Brand: DWYER; Humidity Accuracy: 2%; Sensing Element Type: Pt1000 RTD; Temperature Accuracy: ±0.54°F @ 32°F; Output: 0 to 10V DC; Power Source: 15 to 35V DC; 15 to 29V AC; Temperature Range: -4 °F to 140 °F.
Brand: Dwyer

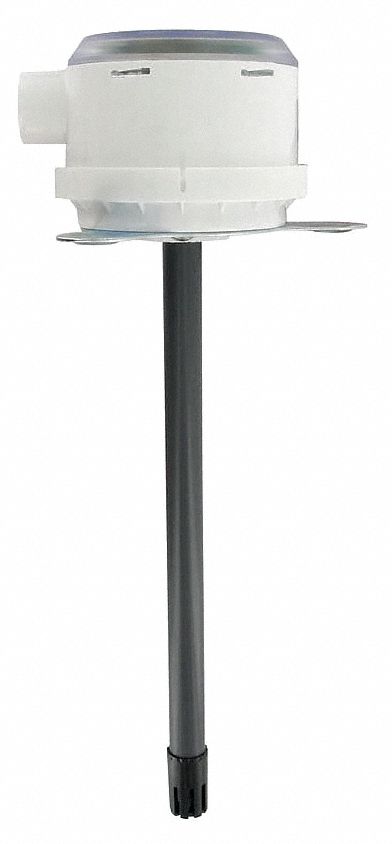

The Dwyer RHP-2D2E is a duct-mount temperature and humidity transmitter with a 0 to 10V DC output. It features a Pt1000 RTD sensing element, 2% humidity accuracy, and temperature accuracy of ±0.54°F @ 32°F. The device operates on a 15 to 35V DC or 15 to 29V AC power source and measures temperatures from -4 °F to 140 °F.

View Product & Quote

Technical Specifications

Parameter	Value
NPS	1/2 in
Type	Pt1000 RTD, Screw Terminals
Brand	DWYER
Output	0 to 10V DC
Probe Lg	9 in
Power Source	15 to 35V DC
Humidity Accuracy	2%
Temperature Range	-4 °F to 140 °F
Sensing Element Type	Pt1000 RTD
Temperature Accuracy	±0.54°F @ 32°F
Manufacturer Part Number	RHP-2D2E
