Dwyer 3G-OTH-180768 — Technical Specifications

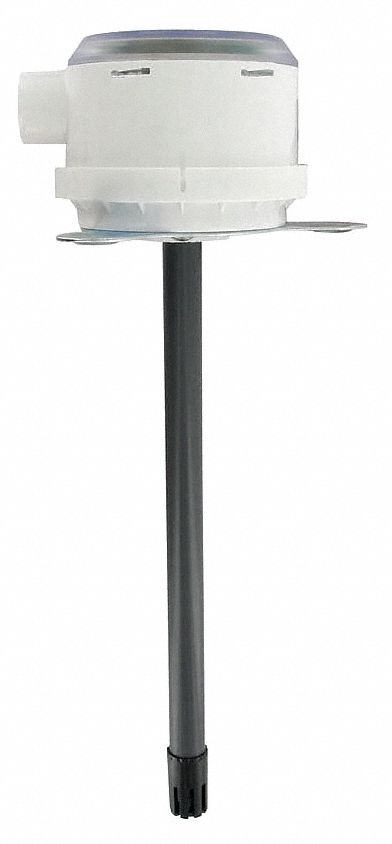

The Dwyer RHP-2D2D is a duct-mount temperature and humidity transmitter with a 0 to 10V DC output. It features a Pt100 RTD sensing element, 2% humidity accuracy, and temperature accuracy of ±0.54°F @ 32°F over a -4 °F to 140 °F range. The device operates on 15 to 35V DC or 15 to 29V AC power and includes screw terminals with a 1/2 in NPS connection and 9 in probe length.
Technical Specifications
| Parameter | Value |
|---|---|
| NPS | 1/2 in |
| Type | Pt100 RTD, Screw Terminals |
| Brand | DWYER |
| Output | 0 to 10V DC |
| Probe Lg | 9 in |
| Power Source | 15 to 35V DC |
| Humidity Accuracy | 2% |
| Temperature Range | -4 °F to 140 °F |
| Sensing Element Type | Pt100 RTD |
| Temperature Accuracy | ±0.54°F @ 32°F |
| Manufacturer Part Number | RHP-2D2D |
